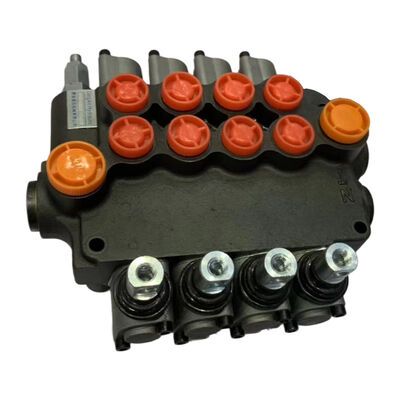

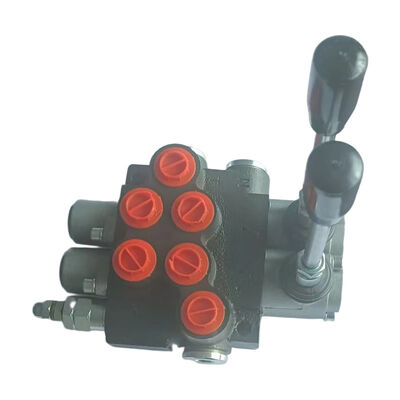

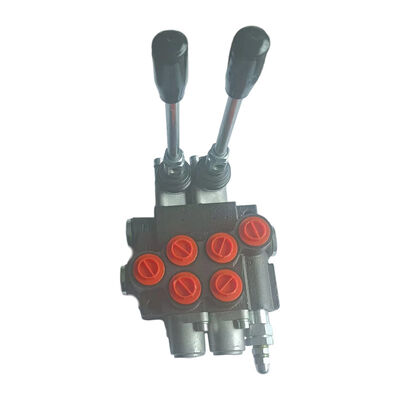

P80 Series Manual Directional Control Valve Electromagnetic Hydraulic Pressure Control Valve
USD20.00
Electromagnetic Pressure Hydraulic Control Valve P80 Series Manual Directional Control Valve
P80 Series Features
P80 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
Inner check valve:
The check valve inside the valve body is to insure the hydraulic oil not to be returned.
Inner relief valve:
The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way:
Parallel circuit, power beyond option.
Control Way:
Manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction:
monoblock construction, 1-6 levers.
Spool Function:
O,Y, P, A.
Option:
Hydraulic lock is available to be added on A and B port.
Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
Specifications
| Nominal Pressure (Mpa) |
Max. Pressure (Mpa) |
Nom. Flow (L/min) |
Max. Flow Rate (L/min) |
Back Pressure (MPa) |
| 20 | 31.5 | 80 | 80 | ≤1 |
| Parameter | Metric Value | Imperial Value |
| Nominal flow rate | 80 L/min | 21 US GPM |
| Operating pressure (max) | 250 bar | 3626 psi |
| Operating range | 15 ~ 75 mm²/s | 15 ~ 75 cst |
| Minimum viscosity | 12 mm²/s | 12 cst |
| Maximum viscosity | 400 mm²/s | 400 cst |
| Ambient temperature range | -40° ~ 80°C | -40° ~ 176°F |
| Structure | Monoblock: 1 - 7 sections | - |
