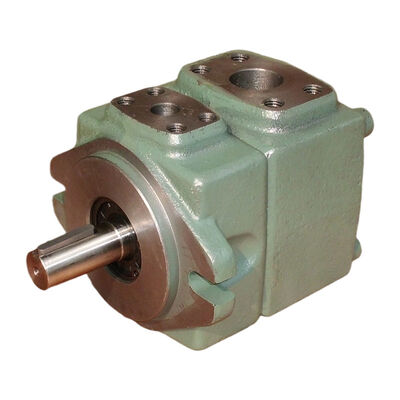

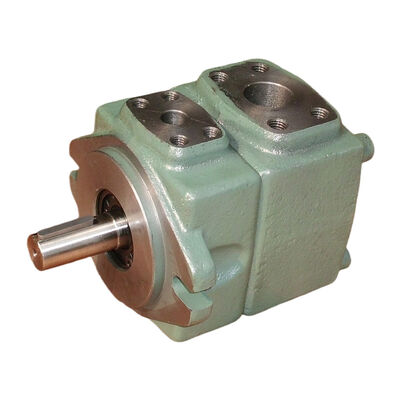

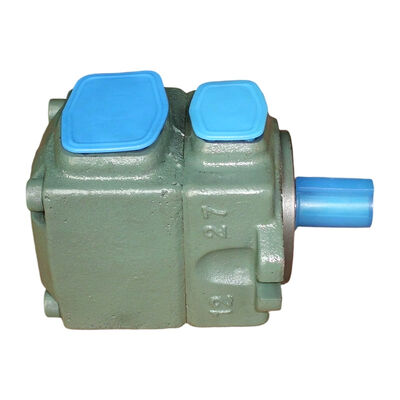

High Pressure Hydraulic Vane Pump PV2R1 PV2R2 PV2R3 PV2R4 Single Vane Pumps
Negotiable
Product Description
PV2R Series Single Vane Pumps High Pressure PV2R1 PV2R2 PV2R3 PV2R4
Features
- This type of pump is specially developed for low noise, and it is a high-pressure, high-performance pump.
- To meet a wide range of applications such as injection molding machines, this type of pump has a very wide flow rate range from 5.8 to 237 em/rev.
- In addition, the internal components of the pump are conducive to maintenance.
Model Number Designation
|
PV2R1
|
-6 | -L | -R | A | A | -43 |
| Series Number | Nominal Displacement (cm³/rev) |
Mounting Type | Rotation Direction | Outlet Position | Inlet Position | Design Number |
| PV2R1* | 6, 8, 10, 12, 14, 17, 19, 23, 25, 31 | L: Base Mounting Type F: Flange Mounting Type |
[Viewed from Shaft Extension] R: Clockwise Direction (Standard)* |
[Viewed from Shaft Extension] A: Upward (Standard) |
[Viewed from Shaft Extension] A: Upward (Standard) |
43 |
| PV2R2* | 41, 47, 53, 59, 65 | 41 | ||||
| PV2R3* | 76, 94, 116 | 31 | ||||
| PV2R4* | 136, 153, 184, 200, 237 | 30 |
Specifications
|
Model
|
Geometric Displacement (cm³/rev) |
Maximum Operating Pressure (MPa) | Flow and Input Power | Speed Range (r/min) |
||||||
| Petroleum-based Hydraulic Oil | Water-containing Hydraulic Fluid | Synthetic Hydraulic Fluid | ||||||||
| Anti-wear Oil | General Oil | AW Water-glycol Fluid* | Water-glycol Fluid | W/O Emulsion | Phosphate Ester Fluid | Max. | Min. | |||
| PV2R1 - 6 | 5.8 | 21* | 16 | 16 | 7 | 7 | 16 | Refer to Pages 180 - 182 | 1800(1200) | 750* |
| PV2R1 - 8 | 8 | |||||||||
| PV2R1 - 10 | 9.4 | 21 | ||||||||
| PV2R1 - 12 | 12.2 | |||||||||
| PV2R1 - 14 | 13.7 | |||||||||
| PV2R1 - 17 | 16.6 | |||||||||
| PV2R1 - 19 | 18.6 | |||||||||
| PV2R1 - 23 | 22.7 | |||||||||
| PV2R1 - 25 | 25.3 | |||||||||
| PV2R1 - 31 | 31 | 16 | ||||||||
| PV2R2 - 41 | 41.3 | 21 | 14 | 16 | 7 | 7 | 14 | Refer to Pages 182, 183 | 1800(1200) | 600* |
| PV2R2 - 47 | 47.2 | |||||||||
| PV2R2 - 53 | 52.5 | |||||||||
| PV2R2 - 59 | 58.2 | |||||||||
| PV2R2 - 65 | 64.7 | |||||||||
| PV2R3 - 76 | 76.4 | 21 | 14 | 16 | 7 | 7 | 14 | Refer to Pages 183, 184 | 1800(1200) | 600 |
| PV2R3 - 94 | 93.6 | |||||||||
| PV2R3 - 116 | 115.6 | 16 | 1800(1200)* | |||||||
| PV2R4 - 136 | 136 | 17.5 | 14 | 16 | 7 | 7 | 14 | Refer to Pages 184, 185 | 1800(1200) | 600 |
| PV2R4 - 153 | 153 | |||||||||
| PV2R4 - 184 | 184 | |||||||||
| PV2R4 - 200 | 201 | |||||||||
| PV2R4 - 237 | 237 | 1800(1200)* | ||||||||
