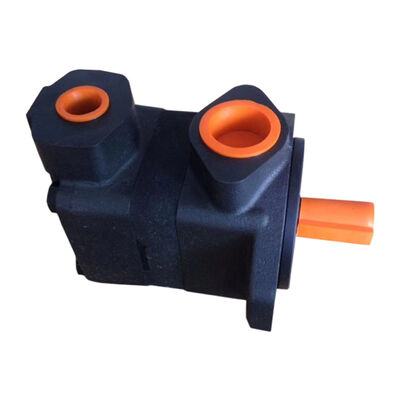

V20 Series Hydraulic Vane Pump Single Pump
USD50.00
Product Description
V20 Series Hydraulic Vane Pump Single Pump
Features
Seric offers the most complete line of hydraulic pumps and motors for mobile and industrial applications.
V20 Type Single Pump Operating Specifications
| Series | U.S. GPM | Displ. (cm³/r) |
Max. Operating Pressure (MPa) |
Max. Speed (rpm) |
Min. Speed (rpm) |
| V20 | 6 | 19.5 | 17.5 | 3400 | 600 |
| 7 | 22.8 | 17.5 | 3000 | ||
| 8 | 26.5 | 17.5 | 2800 | ||
| 9 | 29.7 | 17.5 | 2800 | ||
| 11 | 36.4 | 17.5 | 2500 | ||
| 12 | 39 | 16 | 2400 | ||
| 13 | 42.4 | 16 | 2400 |
V20 Type Single Pump-Model Code
|
V20
|
-1 | P | 11 | P | -1 | C | 11 | R |
| Series | Mounting | Inlet Port Connections | U.S. GPM | Outlet Port Connections | Shafts | Outlet Positions | Design Number | Rotaiton |
| V20 | 1-2 bolt flange 6-2 bolt flange (SAE"B") |
P-1 1/4" NPT thd. S-st. thd. |
6,7,8, 9,11, 12,13, |
P-1/2 NPT thd. S-st.thd. |
1-str key 11-spline 38-spline 62-SAE A spline |
(viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet |
11 | (Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise |
