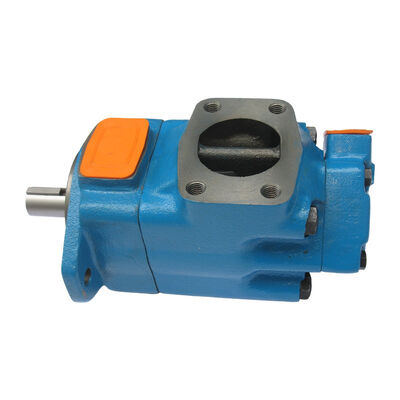

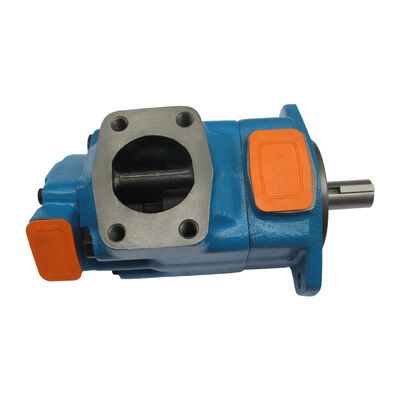

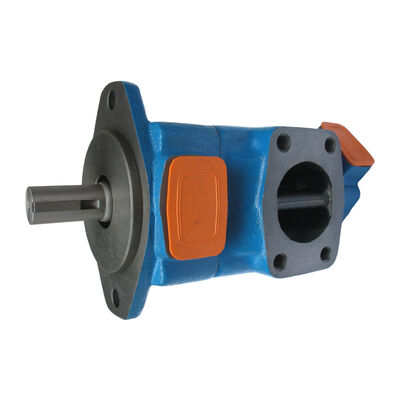

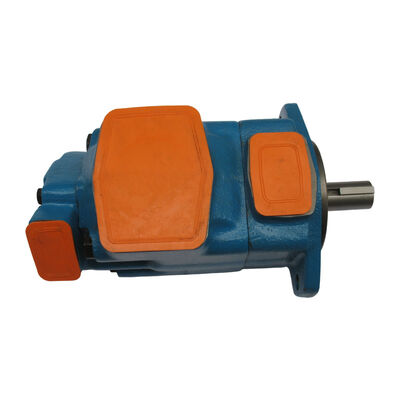

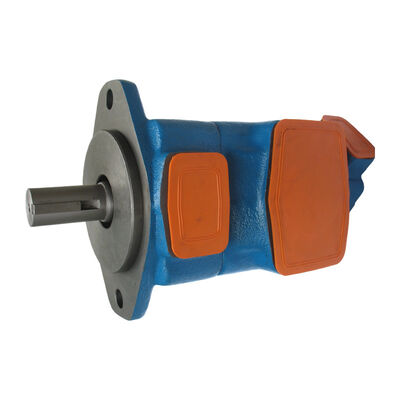

Double Hydraulic Vane Pump VQ Series
USD220.00
Product Description
Hydraulic Vane Pump Double Pump VQ series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Features
Double pump combination of differing displacements permits simper circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with the benefit of low noise levels.
2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ, each section pump flow code, see single pump technical data.
Specifications
|
Model Series
|
Shaft End Pump | Cover End Pump | Wt. kg (lb.) |
||||||||||
| Delivery USgpm @ 1200 r/min 7 bar (100 psi) |
Displ. cm³/r (in³/r) |
Max. r/min |
Max. bar (psi) |
Typical del. L/min (USgpm) @ max. speed & pressure |
Typical input kW (hp) @ max. speed & pressure |
Delivery USgpm @ 1200 r/min 7 bar (100 psi) |
Displ. cm³/r (in³/r) |
Max. r/min |
Max. bar (psi) |
Typical del. L/min (USgpm) @ max. speed & pressure |
Typical input kW (hp) @ max. speed & pressure |
||
| 2520VQ | 12 | 40.2 (2.45) | 2700 | 210 (3000) | 88.5 (23) | 41.0 (55) | 5 | 18.0 (1.10) | 2700 | 210 (3000) | 43.1 (11) | 17.9 (24) | 20.5 |
| 14 | 45.4 (2.77) | 2700 | 210 (3000) | 103.8 (27) | 46.6 (62.5) | 8 | 27.4 (1.67) | 2700 | 210 (3000) | 65.4 (17) | 26.1 (35) | ||
| 17 | 55.2 (3.37) | 2500 | 210 (3000) | 119.2 (31) | 51.8 (69.5) | 11 | 36.4 (2.22) | 2700 | 210 (3000) | 88.5 (23) | 35.4 (47.5) | ||
| 21 | 67.7 (4.12) | 2500 | 210 (3000) | 146.2 (38) | 61.9 (83) | 12 | 39.5 (2.41) | 2700 | 160 (2300) | 98.1 (25.5) | 28.4 (38) | ||
| 14 | 45.9 (2.80) | 2700 | 140 (2000) | 115.4 (30) | 29.1 (39) | ||||||||
| 3520VQ | 25 | 81.6 (4.98) | 2500 | 210 (3000) | 173.1 (45) | 75.3 (101) | 5 | 18.0 (1.10) | 2500 | 210 (3000) | 38.5 (10) | 16.5 (22) | 34.0 (75) |
| 30 | 97.7 (5.96) | 2400 | 210 (3000) | 211.5 (55) | 87.7 (117.5) | 8 | 27.4 (1.67) | 2500 | 210 (3000) | 61.5 (16) | 24.0 (32.5) | ||
| 35 | 112.8 (6.88) | 2400 | 210 (3000) | 230.0 (60) | 98.5 (132) | 11 | 36.4 (2.22) | 2500 | 210 (3000) | 80.8 (21) | 33.0 (44) | ||
| 38 | 121.6 (7.42) | 2400 | 210 (3000) | 250.0 (65) | 104.4 (140) | 12 | 39.5 (2.41) | 2500 | 160 (2300) | 90.4 (23.5) | 26.1 (35) | ||
| 14 | 45.9 (2.80) | 2500 | 140 (2000) | 105.8 (27.5) | 26.8 (36) | ||||||||
| 3525VQ | 25 | 81.6 (4.98) | 2500 | 210 (3000) | 173.1 (45) | 75.3 (101) | 12 | 40.2 (2.45) | 2500 | 210 (3000) | 79.5 (21) | 38.0 (51) | 34.5 (76) |
| 30 | 97.7 (5.96) | 2500 | 210 (3000) | 211.5 (55) | 87.7 (117.5) | 14 | 45.4 (2.77) | 2500 | 210 (3000) | 91.0 (24) | 43.0 (58) | ||
| 35 | 112.8 (6.88) | 2400 | 210 (3000) | 230.0 (60) | 98.5 (132) | 17 | 55.2 (3.37) | 2500 | 210 (3000) | 119.2 (31) | 51.5 (69) | ||
| 38 | 121.6 (7.42) | 2400 | 210 (3000) | 250.0 (65) | 104.4 (140) | 21 | 67.7 (4.12) | 2500 | 210 (3000) | 146.2 (38) | 61.9 (83) | ||
| 4520VQ | 42 | 138.7 (8.46) | 2200 | 175 (2500) | 255.8 (66.5) | 91.4 (122.5) | 5 | 18.0 (1.10) | 2200 | 210 (3000) | 32.0 (8.5) | 14.5 (19.5) | 43.0 (94) |
| 50 | 162.3 (9.90) | 2200 | 175 (2500) | 303.8 (79) | 105.2 (141) | 8 | 27.4 (1.67) | 2200 | 210 (3000) | 51.0 (13.5) | 21.0 (28.5) | ||
| 60 | 193.4 (11.80) | 2200 | 175 (2500) | 369.2 (96) | 126.8 (170) | 11 | 36.4 (2.22) | 2200 | 210 (3000) | 68.0 (18) | 23.5 (32) | ||
| 12 | 39.5 (2.41) | 2200 | 160 (2300) | 77.5 (20.5) | 23.0 (31) | ||||||||
| 14 | 45.9 (2.80) | 2200 | 140 (2000) | 91.0 (24) | 24.0 (32) | ||||||||
| 4525VQ | 42 | 138.7 (8.46) | 2200 | 175 (2500) | 255.8 (66.5) | 91.4 (122.5) | 12 | 40.2 (2.45) | 2200 | 210 (3000) | 68.0 (18) | 33.0 (44) | 46.0 (101) |
| 50 | 162.3 (9.90) | 2200 | 175 (2500) | 303.8 (79) | 105.2 (141) | 14 | 45.4 (2.77) | 2200 | 210 (3000) | 79.5 (21) | 38.0 (51) | ||
| 60 | 193.4 (11.80) | 2200 | 175 (2500) | 369.2 (96) | 126.8 (170) | 17 | 55.2 (3.37) | 2200 | 210 (3000) | 100.0 (26.5) | 45.5 (61) | ||
| 21 | 67.7 (4.12) | 2200 | 210 (3000) | 125.0 (33) | 54.5 (73) | ||||||||
| 4535VQ | 42 | 138.7 (8.46) | 2200 | 175 (2500) | 255.8 (66.5) | 91.4 (122.5) | 25 | 81.6 (4.98) | 2200 | 210 (3000) | 145.5 (38.5) | 66.8 (89) | 53.6 (118) |
| 50 | 162.3 (9.90) | 2200 | 175 (2500) | 303.8 (79) | 105.2 (141) | 30 | 97.7 (5.96) | 2200 | 210 (3000) | 178.0 (47) | 77.5 (104) | ||
| 60 | 193.4 (11.80) | 2200 | 175 (2500) | 369.2 (96) | 126.8 (170) | 35 | 112.8 (6.88) | 2200 | 210 (3000) | 211.5 (55) | 89.5 (120) | ||
| 38 | 121.6 (7.42) | 2200 | 210 (3000) | 230.0 (60) | 97.0 (130) | ||||||||
Performance constants: SAE 10W fluid @ 82°C (180°F); pump inlet @ 0 PSIG (14.7 PSIA)
Note: Outlet pressure must always be higher than inlet pressure. See page 5 for details.
