MSCP-03 03 Series Modular Throttle And Check Valve Hydraulic
Negotiable

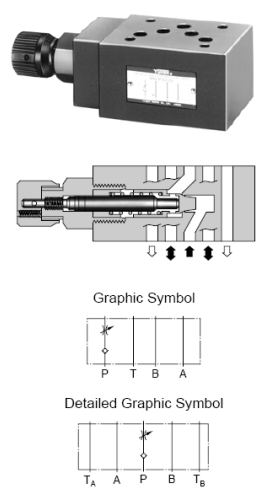

Hydraulic MSCP-03 03 Series Check and Throttle Valves
Features
The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems. Seric's 03 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines. The valves have standardized mounting surface conforming to ISO 4401-AC-05-4-A and optimum thickness for the stacking.
Specifications
|
Model Numbers
|
Max. Operating Pressure MPa (PSI) | Max. Flow L /min (U.S.GPM) |
| MSCP-03-20 | 25 (3630) | 70 (18.5)★ |
Maximum flow decreases when the differential pressure is less than 0.8 MPa (115 PSI). See "Pressure Drop at Throttle Fully Open"
Model Number Designation
|
F-
|
MSCP | -3 | -20 |
| Special Seals | Series Number | Valve Size | Design Number |
| F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) | MSCP: Check and Throttle Valve for P-Line | 3 | 20 |
Typical Performance Characteristics
Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850
Instructions
●To make flow rate adjustment, loosen locking screw for the dial and turn the flow adjustment dial clockwise or anti-clockwise. For a decrease of flow, turn the dial clockwise. Be sure to re-tighten the locking screw firmly after the adjustment of the flow rate.
