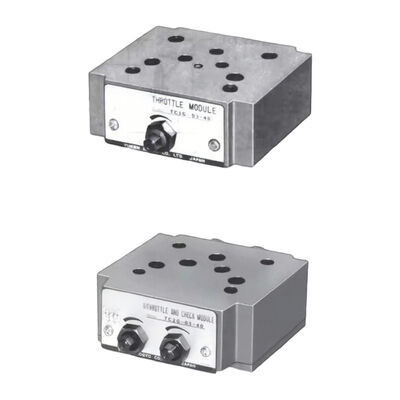

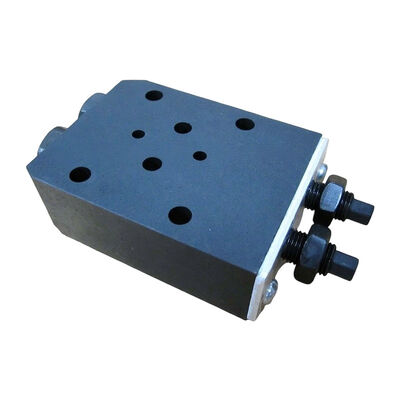

TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
Negotiable
Product Description
Hydraulic Flow Control Throttle and Check Modules TC1G TC2G
Features
Used as pilot choke valves for solenoid controlled pilot operated directional valves and pilot operated directional valves.
Specifications
| Model Numbers | Nominal Flow L/min (U.S.GPM) |
Max. Operating Pressure MPa (PSI) |
Approx. Mass kg (lbs.) |
| TC1G-01-40/4090 | 30 (7.9) | 25 (3630) | 0.6 (1.3) |
| TC2G-01-40/4090 | 0.65 (1.4) | ||
| TC1G-03-*-40/4090 | 80 (21.1) | 1.6 (3.5) | |
| TC2G-03-*-40/4090 | 1.8 (4.0) |
Model Number Designation
| F- | TC1 | G | -3 | -C | -40 | * |
| Special Seals | Series Number | Type of Mounting | Valve Size | Valve Type | Design Number | Design Standards |
| F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) | TC1: Throttle Module | G:Gasket Mounting | 01 | None: Std. Type | 40 | None: Japanese Std. "JIS" and European Design Std. 90: N. American Design Std. |
| TC2: Throttle and Check Module | None: Std. (Metre-Out) Type | |||||
| TC1: Throttle Module | G:Gasket Mounting | 03 | None: Std. Type C: With Check Valve |
40 | ||
| TC2: Throttle and Check Module | None: Std. (Metre-Out) Type A: Metre-in Type |
