BM1 series cycloid hydraulic motor (can interchange with OMP series)
Negotiable
Product Description

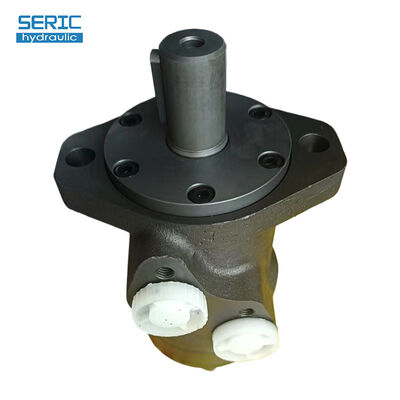

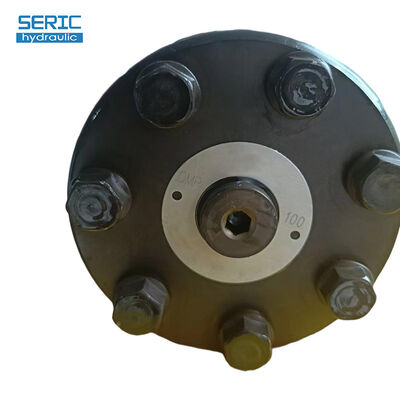

BM1 series cycloid hydraulic motor (can interchange with OMP series)
Features
BM1 motor is a small volume spool valve type motor.
Characteristic features:
- Smooth running over the entire speed range
- Constant operating torque over a wide speed range
- Long life under extreme operating conditions
- High return pressure without the use of drain line (High pressure shaft seal)
- High efficiency
- High starting torque
- Robust and compact design
- High radial and axial bearing capacity
- For applications in both open and closed loop hydraulic systems
- Suitable for a wide variety of hydraulics fluids
Specifications
| Displacement (ml/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | |
| Flow (LPM) |
Continuous | 38 | 45 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
| Intermittent | 45 | 53 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | |
| Speed (RPM) |
Continuous | 698 | 663 | 685 | 560 | 456 | 356 | 285 | 236 | 176 | 145 |
| Intermittent | 853 | 775 | 820 | 671 | 548 | 426 | 341 | 282 | 210 | 173 | |
| Pressure (Mpa) |
Continuous | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 10 | 9 | 9 |
| Intermittent | 14 | 14 | 14 | 14 | 14 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | |
| Torque (N·m) |
Continuous
|
74 | 87 | 124 | 155 | 194 | 227 | 282 | 302 | 365 | 456 |
| Intermittent | 86 | 98 | 141 | 176 | 221 | 260 | 318 | 383 | 406 | 521 | |
1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. The maximum working temperature is 80°.
5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa. A leaking pipe is needed when exceeding.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. Recommending N68anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
