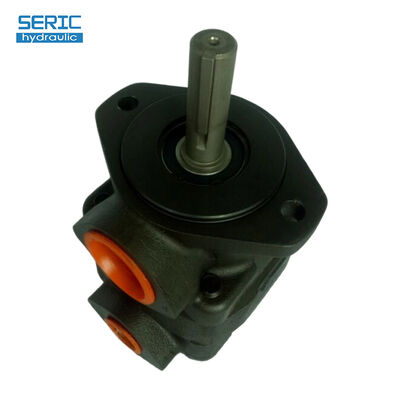

V20 Series Vane Pump 19.5 cm³/r Displacement
Negotiable
Product Description
Vane Pump Single Pump V20 Series
Features
Designed for a wide array of low-to-medium pressure applications, the V20 series of vane pumps are available in an extensive range of displacements. They are commonly employed as pilot and auxiliary pumps in complex industrial systems, as well as in heavy-duty trucks and interstate coaches.
V20 Type Single Pump Operating Specifications
| Series | U.S. GPM | Displ. (cm³/r) |
Max. Operating Pressure (MPa) |
Max. Speed (rpm) |
Min. Speed (rpm) |
| V20 | 6 | 19.5 | 17.5 | 3400 | 600 |
| 7 | 22.8 | 17.5 | 3000 | ||
| 8 | 26.5 | 17.5 | 2800 | ||
| 9 | 29.7 | 17.5 | 2800 | ||
| 11 | 36.4 | 17.5 | 2500 | ||
| 12 | 39 | 16 | 2400 | ||
| 13 | 42.4 | 16 | 2400 |
V20 Type Single Pump-Model Code
|
V20
|
-1 | P | 11 | P | -1 | C | 11 | R |
| Series | Mounting | Inlet Port Connections | U.S. GPM | Outlet Port Connections | Shafts | Outlet Positions | Design Number | Rotaiton |
| V20 | 1-2 bolt flange 6-2 bolt flange (SAE"B") |
P-1 1/4" NPT thd. S-st. thd. |
6,7,8, 9,11, 12,13, |
P-1/2 NPT thd. S-st.thd. |
1-str key 11-spline 38-spline 62-SAE A spline |
(viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet |
11 | (Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise |
