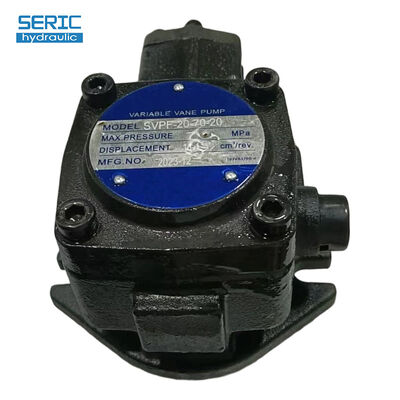

SVPF Series Variable Vane Pump Hydraulic Vane Oil Pump SVPF-20-70-20
Negotiable
Product Description
SVPF Series Variable Vane Pump Hydraulic Vane Oil Pump SVPF-20-70-20
Features
The SVPF-20-70-20 is characterized by its high efficiency, energy-saving, and excellent stability, and is widely used in fields such as injection molding machines, die-casting machines, rubber machinery, and construction machinery.
Specifications
|
SVPF
|
-12 | -70 | -B | -20 |
| Model | Flow L/min (1800 rpm) |
Max. Pressure kgf/cm2 (MPa) |
Shaft Diameter | Design No. |
| SVPF | 12 | 20: 20 kgf/cm2 (2.0 MPa) 35: 35 kgf/cm2 (3.5 MPa) 55: 55 kgf/cm2 (5.5 MPa) 70: 70 kgf/cm2 (7.0 MPa) |
Omit:shaft diameter φ12.7 B:shaft diameter Φ15.875 |
20 |
| 20 | ||||
| 30 | shaft diameter: φ19.05 (only for omit) |
|||
| 40 |
