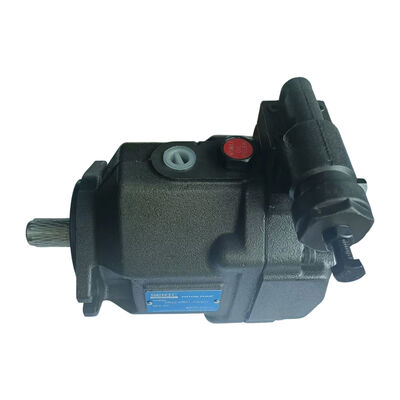

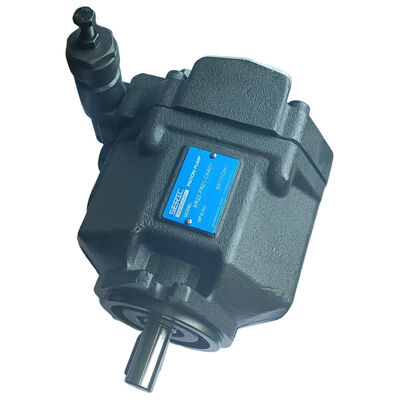

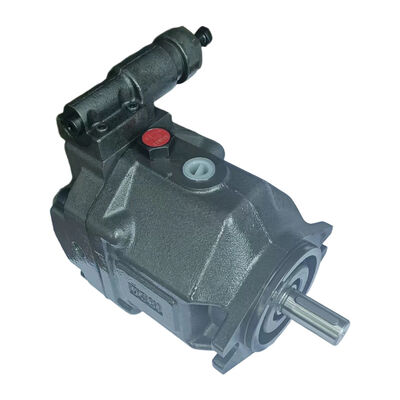

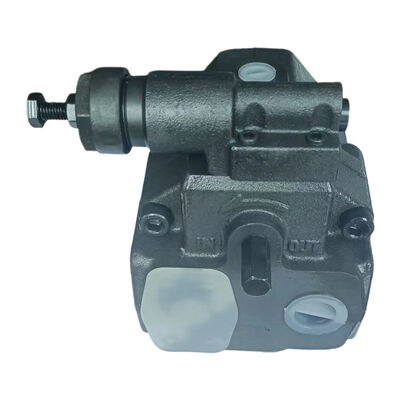

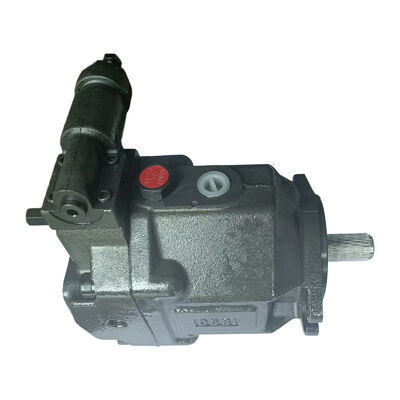

Multi Purpose Low Noise Axial Hydraulic Piston Pump AR16 Series AR22 Series
USD110.00
Product Description
AR16 Series and AR22 Series Low Noise Piston Pump
AR16 and AR22 piston pump Features
Lightweight Low Noise:
Compact design and an aluminum body ensures a high power to mass ratio.
Compact easy to assemble:
Can be directly connected to the electric motor, save fuel tank piping and space
Multi-purpose:
Applicable to a variety of machine tools NC lathe, MC machining machines, pipe bender, small punch, high efficiency special machines etc.
Technical Date
| Model | Geometric Displacement (cm³/rev) |
Min.Adj. Flow (cm³/rev) |
Rate pressure (Mpa) |
Speed (r/min) |
Weight (kg) |
||
| Rate | Max. | Max. | Min. | ||||
| AR16-FR01※-20 | 15.8 | 6 | 16 | 1800 | 600 | 9.8 | |
| AR22-FR01※-20 | 22.2 | 8.5 | |||||
Model Description
| AR16 | -F | R | 1 | B | -20 |
| Series Number | Mounting Type | Rotation Direction | Control Type | Pressure Adjustment Range (MPa) | Design Number |
| AR16 (15.8 cm³/rev) | F: Flange - mounted type | R: Clockwise direction (standard) [Viewed from shaft extension end] | 01: Pressure compensation control type | B: 1.2 - 7 C: 2.0 - 16 |
20 |
| AR22 (22.2 cm³/rev) | 20 |
