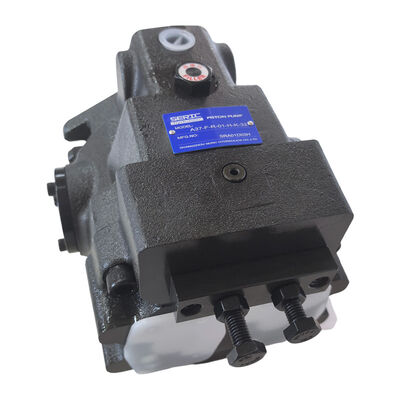

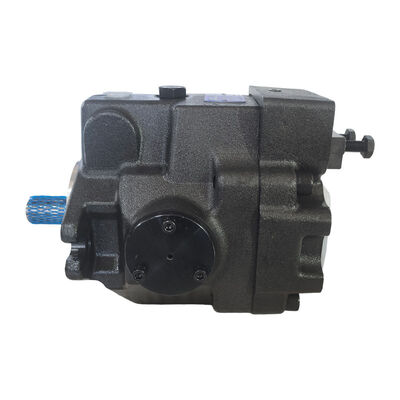

Hydraulic Variable Displacement Single Piston Pumps Pressure Compensator Type
Negotiable
Product Description
A Series Variable Displacement Piston Pumps Single Pump Pressure Compensator Type
Features
1. High efficiency
2. Low noise level
3. Accomplishment of energy-saving
Because the overall efficiency is high and the cut-off characteristics is sharp, thus the input power may be saved.
4. Low heat generation
Because of small power loss, it is possible to reduce the rise in oil temperature. Accordingly, capacity of a reservoir can be reduced.
Specifications
| Model Numbers | Geometric Displacement cm³/rev (cu. in./rev) |
Minimum Adj. Flow cm³/rev (cu. in./rev) |
Operating Pres. MPa (PSI) |
Shaft Speed Range r/min |
Approx. Mass kg (lbs.) |
|||
| Rated | Intermittent | Max. | Min. | Flange Mtg. | Foot Mtg. | |||
| A10-FR01B-12* | 10.0 (.610) | 2 (.122) | 16 (2320) | 21 (3050) | 1800 | 600 | 5.1 (11.2) | — |
| A10-FR01C/H-12* | 8.5 (18.7) | |||||||
| A16-*-R-01-*-*-K-32 | 15.8 (.964) | 4 (.244) | 16 (2320) | 21 (3050) | 1800 | 600 | 16.5 (36.4) | 18.7 (41.2) |
| A22-*-R-01-*-*-K-32 | 22.2 (1.355) | 6 (.366) | 16 (2320) | 16 (2320) | 1800 | 600 | 16.5 (36.4) | 18.7 (41.2) |
| A37-*-R-01-*-*-K-32 | 36.9 (2.25) | 10 (.610) | 16 (2320) | 21 (3050) | 1800 | 600 | 28.0 (61.7) | 32.3 (71.2) |
| A56-*-R-01-*-*-K-32 | 56.2 (3.43) | 12 (.732) | 16 (2320) | 21 (3050) | 1800 | 600 | 35.0 (77.2) | 39.3 (86.7) |
| A70-*R01*S-60* | 70.0 (4.27) | 30 (1.83) | 25 (3630) | 28 (4060) | 1800 | 600 | 58.5 (129) | 70.5 (155) |
| A90-*R01*S-60* | 91.0 (5.55) | 56 (3.42) | 25 (3630) | 28 (4060) | 1800 | 600 | 72.5 (160) | 93 (205) |
| A145-*R01*S-60* | 145 (8.85) | 83 (5.06) | 25 (3630) | 28 (4060) | 1800 | 600 | 92.5 (204) | 117.5 (259) |
Model Number Designation
| A16 | -F | -R | -1 | -B | -S | -K | -32 | * |
| Series Number | Mounting | Direction of Rotation | Control Type | Pres. Adj. Range MPa (PSI) |
Port Position | Shaft Extension | Design Number | Design Std. |
| A16 (15.8 cm³/rev) | F: Flange Mtg. L: Foot Mtg. |
(Viewed from Shaft End) R: Clockwise (Normal) |
01: Pressure Compensator Type | B: 1.2 - 7 (170 - 1020) C: 1.2 - 16 (170 - 2320) H: 1.2 - 21 (170 - 3050) |
None: Axial Port S: Side Port |
K: Keyed Shaft | 32 | Refer to |
| A22 (22.2 cm³/rev) | B: 1.2 - 7 (170 - 1020) C: 1.2 - 16 (170 - 2320) |
32 | ||||||
| A37 (36.9 cm³/rev) | B: 1.2 - 7 (170 - 1020) C: 1.2 - 16 (170 - 2320) H: 1.2 - 21 (170 - 3050) |
32 | ||||||
| A56 (56.2 cm³/rev) | 32 |
| A70 | -F | R | 1 | B | S | -60 | * |
| Series Number | Mounting | Direction of Rotation | Control Type | Pres. Adj. Range MPa (PSI) |
Port Position | Design Number | Design Std. |
| A10 (10.0 cm³/rev) | F: Flange Mtg. | [Viewed from Shaft End] R: Clockwise (Normal) |
01: Pressure Compensator Type | B: 1.2 - 7 (170 - 1020) C: 2.0 - 16 (290 - 2320) H: 2.0 - 21 (290 - 3050) |
— | 12 | Refer to |
| A70 (70.0 cm³/rev) | F: Flange Mtg. L: Foot Mtg. |
B: 1.2 - 7 (170 - 1020) C: 1.5 - 16 (220 - 2320) H: 1.8 - 21 (260 - 3050) K: 2.0 - 28 (290 - 4060) |
S: Side Port | 60 | |||
| A90 (91.0 cm³/rev) | 60 | ||||||
| A145 (145 cm³/rev) | 60 |
