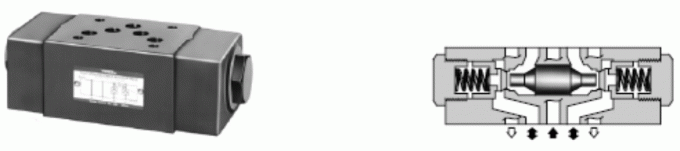

03 Series Hydraulic Modular Pilot Operated Check Valve MPA-03 MPB-03 MPW-03
Negotiable
Product Description
03 Series Pilot Operated Check Valves MPA-03 MPB-03 MPW-03
Features
The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems. Seric's 03 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines. The valves have standardized mounting surface conforming to ISO 4401-AC-05-4-A and optimum thickness for the stacking.
Specifications
|
Model Numbers
|
Max. Operating Pressure MPa (PSI) |
Max. Flow L /min (U.S.GPM) |
| MPA-03-∗-20 | 25(3630) | 70 (18.5) |
| MPB-03-∗-20 | ||
| MPW-03-∗-20 |
Model Number Designation
|
F-
|
MPA | -3 | -2 | -20 |
| Special Seals | Series Number | Valve | Cracking Pressure MPa(PSI) |
Design Number |
| F:Special Seals for Phosphate Ester Type Fluids (Omit if not required) | MPA: Pilot Operated Check Valve for A-Line | 3 | 2 : 0.2 (29) 4 : 0.4 (58) |
20 |
| MPB: Pilot Operated Check Valve for B-Line | ||||
| MPW: Pilot Operated Check Valve for A&B-Lines |
Typical Performance Characteristics
Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850
