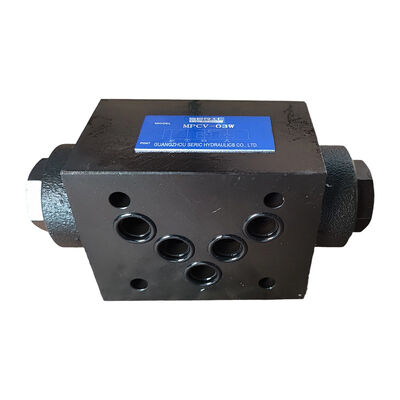

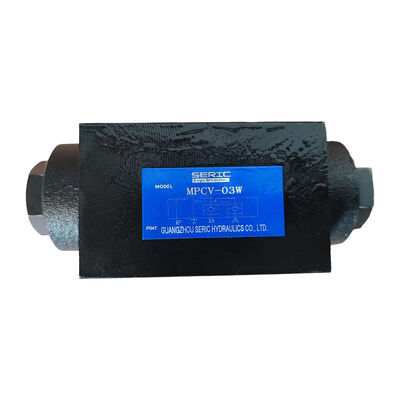

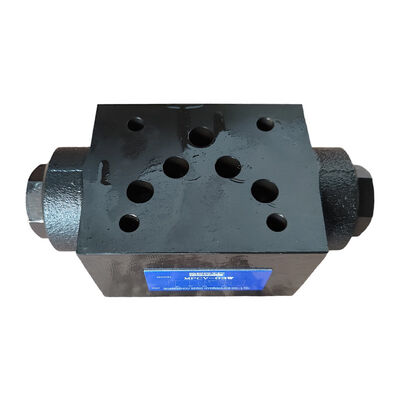

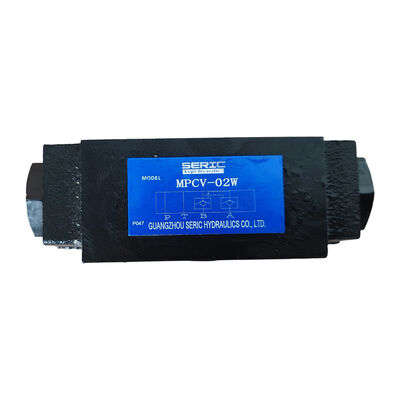

Hydraulic Pilot Operated Check Modular Valve MPCV-02 MPCV-03 MPCV-04 MPCV-06
Negotiable
Modular Pilot Operated Check Valves MPCV Series MPCV-02 MPCV-03 MPCV-04 MPCV-06
Features
Compared with traditional hydraulic valves, the biggest feature of modular control valves is that they can achieve system installation without the need for piping, thus reducing system leakage, vibration, and noise.
Compared to traditional pipeline connections, modular control valves do not require special installation skills and are very convenient for changing the functionality of hydraulic systems. Due to the absence of piping, the overall reliability of the system is enhanced, and it is easy for daily inspection and maintenance.
It is widely applicable to various industrial hydraulic systems, such as injection molding machine hydraulic systems, CNC machine tool hydraulic systems, metallurgical equipment hydraulic systems, etc.
Symbol
Specifications
| Model | Max. operating pressure (kgf/cm²) |
Cracking pressure (kgf/cm²) |
Max. flow (L/min) |
Weight (kg) |
| MPCV-02-A/B-※ | 250 | 05: 0.35 50: 3.5 |
35 | 1.1 |
| MPCV-02-W-※ | 1.2 | |||
| MPCV-03-A/B-※ | 70 | 2.6 | ||
| MPCV-03-W-※ | 2.7 | |||
| MPCV-04-A/B-※ | 190 | 7.3 | ||
| MPCV-04-W-※ | ||||
| MPCV-06-A/B-※ | 300 | 12.8 | ||
| MPCV-06-W-※ |
Model Number Designation
| MPCV | 02 | A | 05 |
| SERIES NUMBER | VALVE SIZE | CONTROL OIL PORT | CRACKING PRESSURE |
| MPCV | 02: 1/4” 03: 3/8” 04: 1/2" 06: 3/4" |
A: A port B: B port W: A, B port |
05: 0.35 kgf/cm² 50: 3.5 kgf/cm² |
