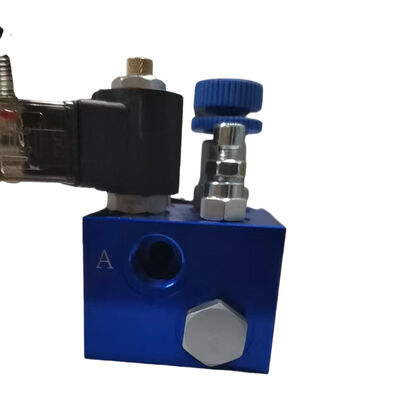

Compact Cartridge Type Hydraulic Lift Valve ET-04 Lift Manifold Valve
Negotiable
Product Description
Hydraulic Lift Valves ET-04 Lift Manifold Valves
Features
Hydraulic lift valve type ET-04 is a compact hydraulic solution to control single acting hydraulic cylinders.
The whole lift up/down process can be done stably and the rate of the retracting/lowering will not be influenced by the load.
Specifications
| Item | ET-04 |
| Control type | Flow/pressure/direction Control Valve |
| Rated flow | 40L/min |
| Weight | 0.8 |
| Max. Pressure | 250 bar |
| Structure | cartridge type |
| Power | HYDRAULIC |
| Dimension(L*W*H) | 122x90x145 |
| Solenoid valve type | Normally closed/open type with/without Manual override |
| Solenoid valve coil | 12VDC/24VDC/110VAC/220VAC |
