ET-02 Hydraulic Pressure Control Flow Control Valve Lift Valve Hydraulic Platform Lift Composite Valve Group
Negotiable
Product Description

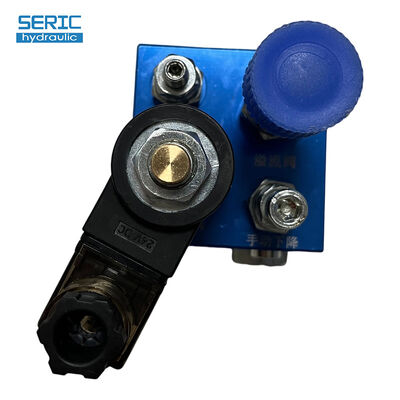

ET-02 Hydraulic Pressure Control Flow Control Valve Lift Valve Hydraulic Platform Lift Composite Valve Group
Features
l The ET-02 valve is a cartridge hydraulic lift combination valve, specially designed for hydraulic lift platforms, cargo lifts and other equipment. It enables smooth lifting and lowering movements via solenoid control.
l It generally supports AC220V or DC24V voltage supply.
l Equipped with a lowering throttling function, it effectively controls the lowering speed and ensures stable operation even when the load changes.
Specifications
| Item | ET-02 |
| Control type | Flow/pressure/direction Control Valve |
| Rated flow | 20L/min |
| Weight | 0.8 |
| Max. Pressure | 250 bar |
| Structure | cartridge type |
| Power | HYDRAULIC |
| Dimension(L*W*H) | 65x65x45 |
| Solenoid valve type | Normally closed/open type with/without Manual override |
| Solenoid valve coil | 12VDC/24VDC/110VAC/220VAC |
