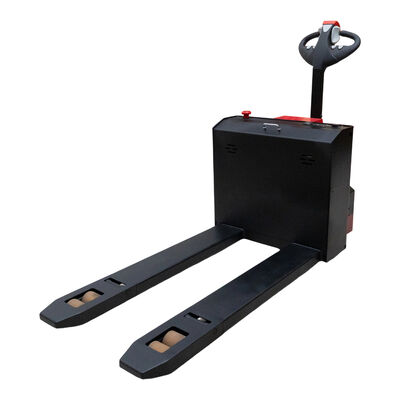

YTP-30A Electric Walkie Pallet Truck 3000kg Load Capacity
Negotiable
Product Description
YTP-30 Walkie Pallet Truck Electric Pallet Mover and Stacker
Product Features
- Reinforced steel frame construction for enhanced durability and load capacity.
- Lifting mechanism employs a heavy-duty linkage drive system for superior power transmission.
- Patented four-link lifting structure ensures smoother operation and extends cylinder service life.
- Powered by a high-performance AC motor, delivering robust, stable, and reliable driving force.
Main Specifications
| Specification | YTP-30A | YTP-30E |
| Rated Load | 3000 kg | 3000 kg |
| Fork Size (Customizable) | 680mm × 1220mm | 560mm × 1150mm |
| Min. Fork Height | 85 mm | 85 mm |
| Max. Fork Height | 200 mm | 200 mm |
| Battery (Li-ion Optional) | 2×12V / 100Ah | 2×12V / 100Ah |
| Charger | DC24V / 15A | DC24V / 15A |
| Drive Wheel | AC24V / 1500W (Φ250) | AC24V / 1500W (Φ250) |
| Drive Motor Controller | 250A | 250A |
| Hydraulic Power Unit | DC24V / 1200W (1.1cc/r) | DC24V / 1200W (1.1cc/r) |
