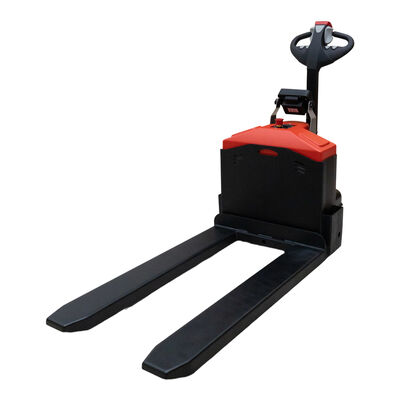

Walkie Electric Pallet Truck with Built-in Scale YTP-15A (C)
Negotiable
Product Description
Walkie Electric Pallet Truck with Built-in Scale YTP-15A (C)
Product Features
- Compact design for easy maneuverability in tight spaces.
- Simple and flexible operation suitable for various skill levels.
- Open-layout electrical cabinet enables quick and convenient maintenance.
- Patented four-link lifting mechanism ensures smooth operation and extends cylinder service life.
- Integrated onboard charger allows for easy and efficient charging.
Main Specifications
| Specification | YTP-15A (C) | YTP-15E (C) | YTP-20A (C) | YTP-20E (C) |
| Rated Load | 1500 kg | 1500 kg | 2000 kg | 2000 kg |
| Fork Size (Customizable) | 680mm × 1220mm | 560mm × 1150mm | 680mm × 1220mm | 560mm × 1150mm |
| Min. Fork Height | 90 mm | 90 mm | 90 mm | 90 mm |
| Max. Fork Height | 200 mm | 200 mm | 200 mm | 200 mm |
| Battery (Li-ion Optional) | 2×12V / 85Ah | 2×12V / 85Ah | 4×12V / 30Ah | 4×12V / 30Ah |
| Charger | DC24V / 10A | DC24V / 10A | DC48V / 8A | DC48V / 8A |
| Drive Wheel | DC24V / 750W (Φ210) | DC24V / 750W (Φ210) | DC48V / 1000W (Φ210) | DC48V / 1000W (Φ210) |
| Drive Motor Controller | 110A | 110A | 100A | 100A |
| Hydraulic Power Unit | DC24V / 800W (0.65cc/r) | DC24V / 800W (0.65cc/r) | DC48V / 800W (0.65cc/r) | DC48V / 800W (0.65cc/r) |
