BT-06 Pilot Operated Relief Valve with Remote Control Function
Negotiable
Product Description

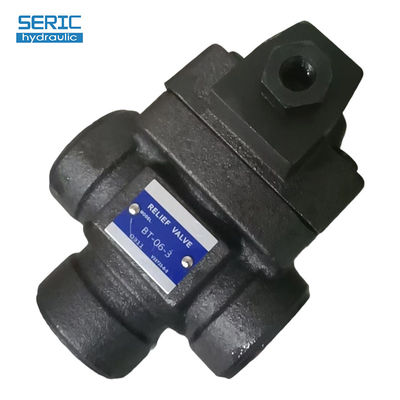

Pilot Operated Relief Valve BT-06
Features
These valves safeguard hydraulic systems by relieving excess pressure and can also be used to maintain consistent system pressure. Remote control and unloading functions are enabled through the use of vent ports.
Specifications
| Model Numbers | Max. Operating Pressure MPa (PSI) |
Pres. Adj. Range MPa (PSI) |
Max. Flow L/min (U.S.GPM) |
Approx. Mass kg (lbs.) |
||
| Threaded Connection | Sub-plate Mounting | BT type | BG type | |||
| BT-03-*-32 | BG-03-*-32 | 25 (3630) | Note) ★25 (★-3630) |
100 (26.4) | 5.0 (11.0) | 4.7 (10.4) |
| BT-06-*-32 | BG-06-*-32 | 200 (52.8) | 5.0 (11.0) | 5.6 (12.3) | ||
| BT-10-*-32 | BG-10-*-32 | 400 (106) | 8.5 (18.7) | 8.7 (19.2) | ||
Model Number Designation
| F- |
B
|
T | –03 | –V | –40 | * |
| Special Seals | Series Number | Type of Mounting | Valve Size | High Venting Pres. Feature | Design Number | Design Standards |
| F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) |
B:Pilot Operated Relief Valves | T:Threaded Connection | 03 | V:For High Venting Pressure Feature(Omit if not required) | 32 | None: Japanese Std."JIS" 80: European Design Std. 90: N.American Design Std. |
| 06 | 32 | |||||
| 10 | 32 | |||||
| G:Sub-plate Mounting | 03 | 32 | None: Japanese Std."JIS" and European Design Std. 90: N.American Design Std. |
|||
| 06 | 32 | |||||
| 10 | 32 |
★Use high venting pressure type to reduce the response time from unload to onload.
