Multi Purpose Low Noise Axial Hydraulic Piston Pump AR16 Series AR22 Series

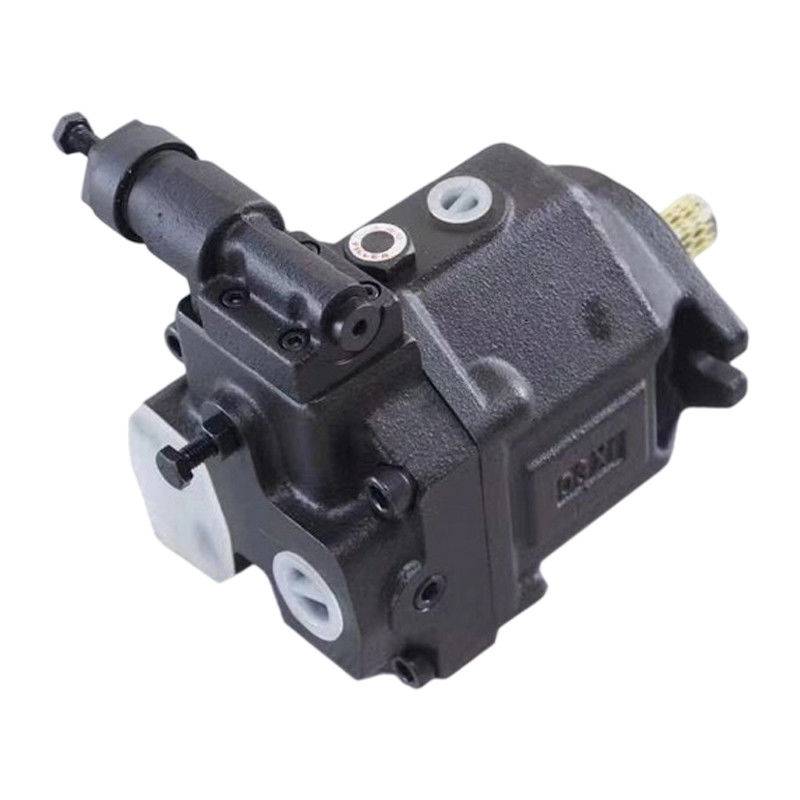

Name: Multi Purpose Low Noise Axial Hydraulic Piston Pump AR16 Series AR22 Series
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: AR16 Series
Price: 110.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangzhou
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	AR16 Series

Detail Information

Place of Origin:

Guangzhou

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

AR16 Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Low Noise Hydraulic Piston Pump

Hydraulic Piston Pump AR22

Axial Hydraulic Pump AR16

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD110.00

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

AR16 Series and AR22 Series Low Noise Piston Pump

AR16 and AR22 piston pump Features

Lightweight Low Noise:

Compact design and an aluminum body ensures a high power to mass ratio.

Compact easy to assemble:

Can be directly connected to the electric motor, save fuel tank piping and space

Multi-purpose:

Applicable to a variety of machine tools NC lathe, MC machining machines, pipe bender, small punch, high efficiency special machines etc.

Technical Date

Model	Geometric Displacement (cm³/rev)	Min.Adj. Flow (cm³/rev)	Rate pressure (Mpa)		Speed (r/min)		Weight (kg)
			Rate	Max.	Max.	Min.
AR16-FR01※-20	15.8	6	16		1800	600	9.8
AR22-FR01※-20	22.2	8.5

Model Description

AR16	-F	R	1	B	-20
Series Number	Mounting Type	Rotation Direction	Control Type	Pressure Adjustment Range (MPa)	Design Number
AR16 (15.8 cm³/rev)	F: Flange - mounted type	R: Clockwise direction (standard) [Viewed from shaft extension end]	01: Pressure compensation control type	B: 1.2 - 7 C: 2.0 - 16	20

AR22 (22.2 cm³/rev)					20
