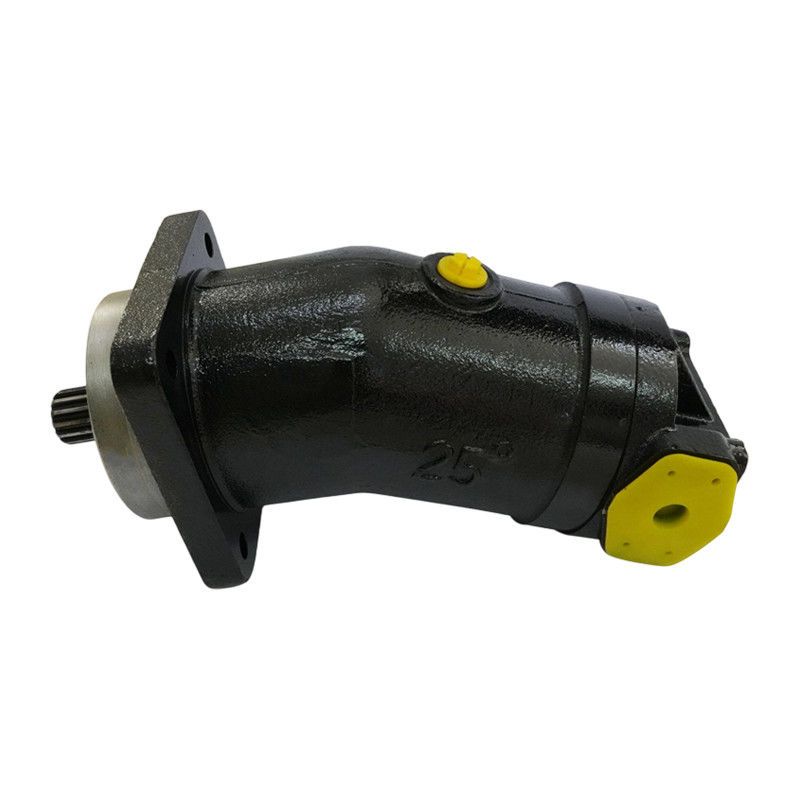

Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series

Name: Fixed Displacement Hydraulic Piston Pump Axial Piston Fixed Motor A2F Series
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: A2F Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	A2F Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

A2F Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Fixed Displacement Hydraulic Piston Pump

A2F Hydraulic Piston Pump

Hydraulic Axial Piston Fixed Motor

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Piston Pump Axial Piston Fixed Motor A2F Series

Features

This product has a fixed displacement, applicable as a pump or motor for hydrostatic transmission in both open and closed systems.

- As a Pump: Flow rate is directly proportional to rotational speed and displacement.

- As a Motor: Output rotational speed is directly related to input and inversely related to displacement. Output torque grows with the increase of pressure difference between high and low pressure sides.

Structural & Performance Advantages

- Load - bearing Capacity: The drive shaft can bear radial loads.

- Efficient Oil Distribution: The cylinder block and valve plate use spherical oil distribution, enabling automatic alignment during rotation, with low circumferential speed and high efficiency.

- Low Noise: Operates with low noise levels.

Application

It has an inclined shaft structure, suitable for hydrostatic transmission in open or closed systems.

Model Number Designation

A2F	55		R	2	P	1
Type	Size	Displacement (Vgmin~Vgmax)	Direction of Rotation	Series	Shaft End	Rear cover
Fixed Displacement Pump/Motor	10	9.4ml/r	(Viewed on drive shaft ) R: Clock wise L: Anti-clock wise W: Alternating (not for pumps in open circuit)	Size 10-160: 1, 2, 3, 4 Size 200-500: 5	P: keyed shaft GB1096-79 Z: splines shaft DIN 5480 S: splines shaft GB 3478.1-83	Port Plate: 1 Port Plate: 2 Port Plate: 3 Port Plate: 4 Port Plate: 5 Port Plate: 6 Port Plate: 7
	12	11.6ml/r
	23	22.7ml/r
	28	28.1ml/r
	45	44.3ml/r
	55	54.8ml/r
	63	63.0ml/r
	80	80.0ml/r
	107	107ml/r
	125	125ml/r
	160	160ml/r
	200	200ml/r
	225	225ml/r
	250	250ml/r
	355	355ml/r
	500	500ml/r
