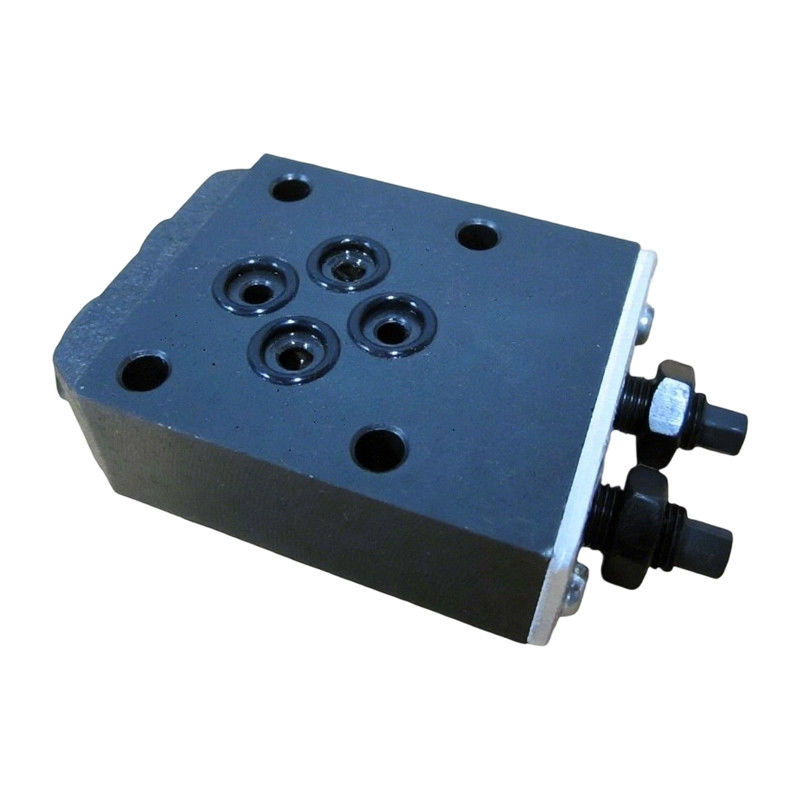

TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve

Name: TC1G TC2G Hydraulic Flow Control Valve Throttle And Check Modular Valve
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: TC1G/TC2G Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	TC1G/TC2G Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

TC1G/TC2G Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

TC1G Hydraulic Flow Control Valve

TC2G Hydraulic Flow Control Valve

Hydraulic Throttle And Check Modular Valve

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Hydraulic Flow Control Throttle and Check Modules TC1G TC2G

Features

Used as pilot choke valves for solenoid controlled pilot operated directional valves and pilot operated directional valves.

Specifications

Model Numbers	Nominal Flow L/min (U.S.GPM)	Max. Operating Pressure MPa (PSI)	Approx. Mass kg (lbs.)
TC1G-01-40/4090	30 (7.9)	25 (3630)	0.6 (1.3)
TC2G-01-40/4090	30 (7.9)		0.65 (1.4)
TC1G-03-*-40/4090	80 (21.1)		1.6 (3.5)
TC2G-03-*-40/4090	80 (21.1)		1.8 (4.0)

Model Number Designation

F-	TC1	G	-3	-C	-40	*
Special Seals	Series Number	Type of Mounting	Valve Size	Valve Type	Design Number	Design Standards
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required)	TC1: Throttle Module	G:Gasket Mounting	01	None: Std. Type	40	None: Japanese Std. "JIS" and European Design Std. 90: N. American Design Std.
	TC2: Throttle and Check Module	G:Gasket Mounting	01	None: Std. (Metre-Out) Type	40
	TC1: Throttle Module	G:Gasket Mounting	03	None: Std. Type C: With Check Valve	40
	TC2: Throttle and Check Module	G:Gasket Mounting	03	None: Std. (Metre-Out) Type A: Metre-in Type	40
