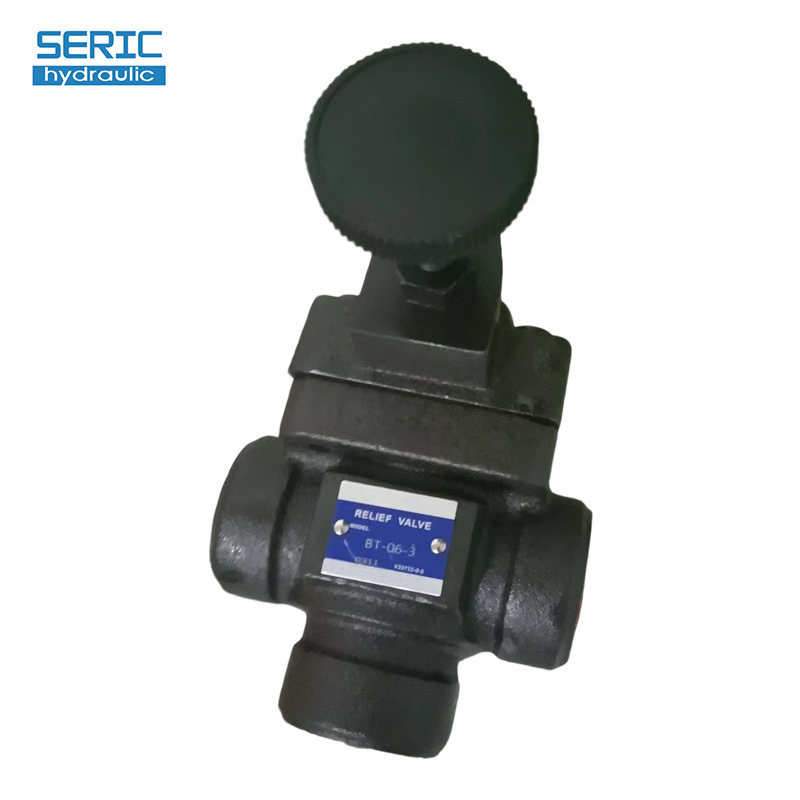

BT-06 Pilot Operated Relief Valve with Remote Control Function

Name: BT-06 Pilot Operated Relief Valve with Remote Control Function
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: BT Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	BT Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

BT Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Remote Control Function Pilot Operated Relief Valve

Sub-plate Mounting Hydraulic Pressure Control Valve

Threaded Connection Safety Relief Valve

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Pilot Operated Relief Valve BT-06

Features

These valves safeguard hydraulic systems by relieving excess pressure and can also be used to maintain consistent system pressure. Remote control and unloading functions are enabled through the use of vent ports.

Specifications

Model Numbers		Max. Operating Pressure MPa (PSI)	Pres. Adj. Range MPa (PSI)	Max. Flow L/min (U.S.GPM)	Approx. Mass kg (lbs.)
Threaded Connection	Sub-plate Mounting	Max. Operating Pressure MPa (PSI)	Pres. Adj. Range MPa (PSI)	Max. Flow L/min (U.S.GPM)	BT type	BG type
BT-03-*-32	BG-03-*-32	25 (3630)	Note) ★25 (★-3630)	100 (26.4)	5.0 (11.0)	4.7 (10.4)
BT-06-*-32	BG-06-*-32			200 (52.8)	5.0 (11.0)	5.6 (12.3)
BT-10-*-32	BG-10-*-32			400 (106)	8.5 (18.7)	8.7 (19.2)

Model Number Designation

F-	B	T	–03	–V	–40	*
Special Seals	Series Number	Type of Mounting	Valve Size	High Venting Pres. Feature	Design Number	Design Standards
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required)	B:Pilot Operated Relief Valves	T:Threaded Connection	03	V:For High Venting Pressure Feature(Omit if not required)	32	None: Japanese Std."JIS" 80: European Design Std. 90: N.American Design Std.
			06		32
			10		32
		G:Sub-plate Mounting	03		32	None: Japanese Std."JIS" and European Design Std. 90: N.American Design Std.
			06		32
			10		32

★Use high venting pressure type to reduce the response time from unload to onload.
