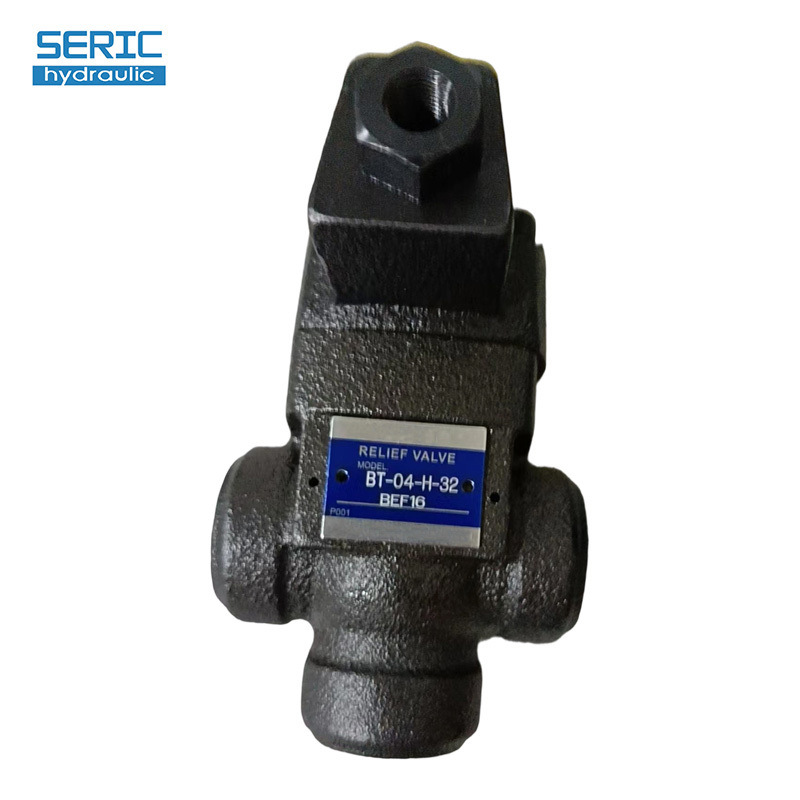

04 Series BT-04-H-32 Pilot Operated Relief Valves

Name: 04 Series BT-04-H-32 Pilot Operated Relief Valves
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: BT Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	BT Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

BT Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

BT-04 pilot operated relief valve

hydraulic pressure control valve with warranty

04 series hydraulic relief valves

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

04 Series BT-04-H-32 Pilot Operated Relief Valves

Features

l These relief control valves are commonly found in basic hydraulic systems, where they help keep pressure levels consistent.

l Pilot-operated relief valves feature a straightforward design and offer great value.

l The vent circuit allows for remote control and system unloading.

l They’re engineered to shield hydraulic systems from excessive pressure.

l A cast iron body delivers strength and durability, ensuring a longer service life.

l Hardened steel internal parts also contribute to extended longevity.

Model Number Designation

B	T	-4	32
Series Number	Mounting Type	Specification	Pressure Rating
B: Pilot Operated Relief Valve	T: Tubular Mounting	04: 16 Nominal Diameter (1/2) 06: 25 Nominal Diameter (3/4) 10: 32 Nominal Diameter (11/4)

Precautions for Use

l The back pressure at the oil return port must not exceed 0.5 MPa.

l The oil return pipe should directly return to the oil tank and must not be connected to the oil return pipes of other valves.

l When adjusting the pressure regulating handle, turn clockwise to increase the pressure and counterclockwise to decrease it. Be sure to tighten the fixing nut after pressure adjustment.

l When the flow rate is small, the set pressure is prone to instability. For specifications 04 and 06, use a flow rate of more than 8 L/min; for specification 10, use a flow rate of more than 15 L/min.
