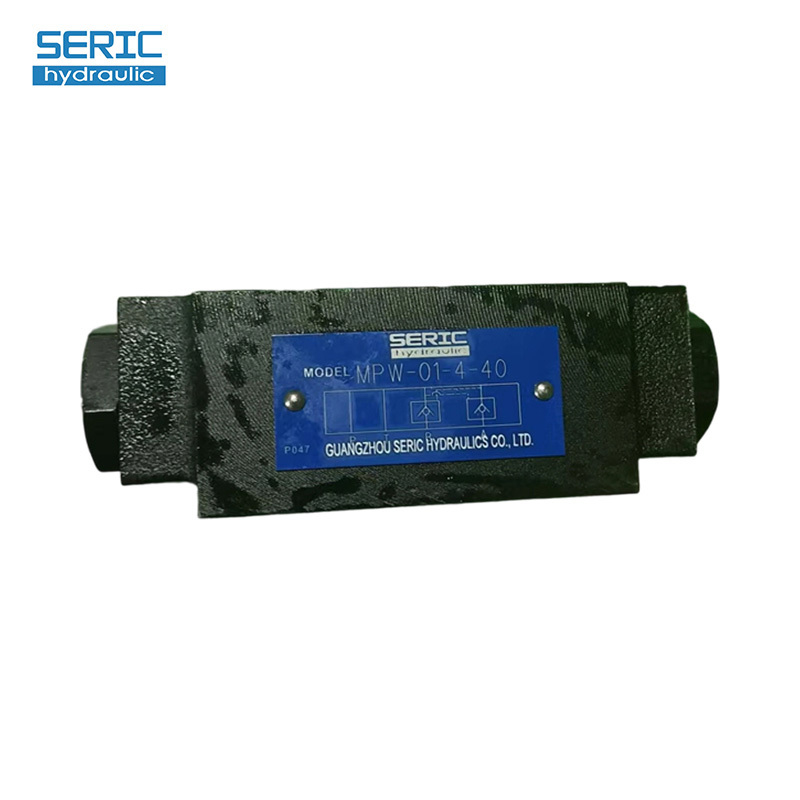

01 Series Pilot Operated Check Valves MPW-01 Modular Valves
Features
Modular valves are functional components that allow for easy assembly and construction of hydraulic systems by stacking them together using mounting bolts. As a result, there is no need for piping when manufacturing these hydraulic systems.
Seric's 01 Series Modular Valves find extensive application in forming hydraulic systems for a range of industrial equipment, such as machine tools, special-purpose machines, and injection molding machines.
These valves feature a standardized mounting surface compliant with ISO 4401-AB-03-4-A, along with an optimal thickness for stacking purposes.
Specifications
|
Model Numbers
|
Max. Operating Pressure
MPa (PSI) |
Max. Flow
L /min (U.S.GPM) |
| MPA-01-∗-40 |
31.5 (4570) |
35 (9.25)★ |
| MPB-01-∗-40 |
| MPW-01-∗-40 |
Model Number Designation
|
F-
|
MPW |
-1 |
2 |
-40 |
| Special Seals |
Series Number |
Valve Size |
Pres. Adj . Range
MPa (PSI) |
Design Number |
| F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) |
MPA: Pilot Operated Check Valve for A-Line |
1 |
2: 0.2 (29)
4: 0.4 (58) |
40 |
| MPB: Pilot Operated Check Valve for B-Line |
| MPW: Pilot Operated Check Valve for A&B-Lines |
Typical Performance Characteristics
Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850
MPA-01-∗-40, MPB-01-∗-40, MPW-01-∗-40
Approx. Mass...... 1.2 kg (2.6 lbs.)
