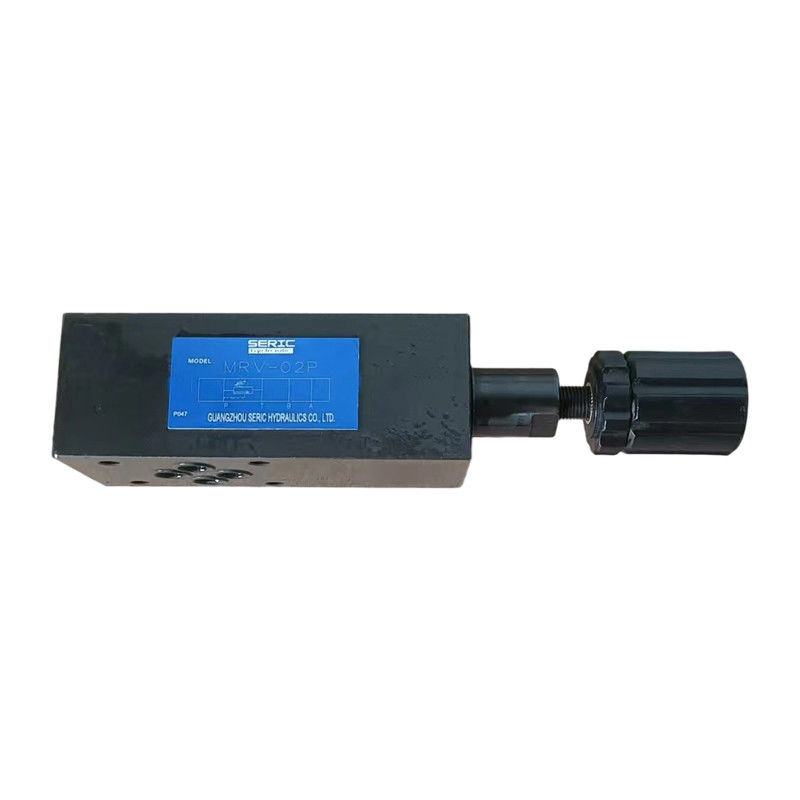

MRV Series Hydraulic Modular Relief Valve MRV-02 MRV-03

Name: MRV Series Hydraulic Modular Relief Valve MRV-02 MRV-03
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: MRV Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	MRV Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

MRV Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Hydraulic Modular Relief Valve

Modular Relief Valve MRV-02

Modular Relief Valve MRV-03

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

MRV Series Modular Relief Valves MRV-02 MRV-03

Features

Compared with traditional hydraulic valves, the biggest feature of modular control valves is that they can achieve system installation without the need for piping, thus reducing system leakage, vibration, and noise.

Compared to traditional pipeline connections, modular control valves do not require special installation skills and are very convenient for changing the functionality of hydraulic systems. Due to the absence of piping, the overall reliability of the system is enhanced, and it is easy for daily inspection and maintenance.

It is widely applicable to various industrial hydraulic systems, such as injection molding machine hydraulic systems, CNC machine tool hydraulic systems, metallurgical equipment hydraulic systems, etc.

Symbol

MRV Series Hydraulic Modular Relief Valve MRV-02 MRV-03 0

Specifications

Model	Max. operating pressure (kgf/cm²)	Pressure adj. range (kgf/cm²)	Max. flow (L/min)	Weight (kg)
MRV-02-A/B-※	250	1: 7 - 70 2: 7 - 140 3: 7 - 210	35	1.5
MRV-02-W-※			35	2
MRV-03-A/B-※			70	3.3
MRV-03-W-※			70	3.9

Model Number Designation

MRV	02	P	3	A	L
SERIES NUMBER	VALVE SIZE	CONTROL OIL PORT	PRESSURE ADJUSTING RANGE	DIRECTION OF KNOB	KNOB TYPE
MRV	02: 1/4” 03: 3/8"	P: P port A: A port B: B port W: A, B port	1: 7-70 kgf/cm² 2: 7-140kgf/cm² 3: 7-210 kgf/cm²	A: A port side B: B port side (standard type)	K: Haft turning knob bolt rod adjust L: Inner hexangular bolt rod adjust
