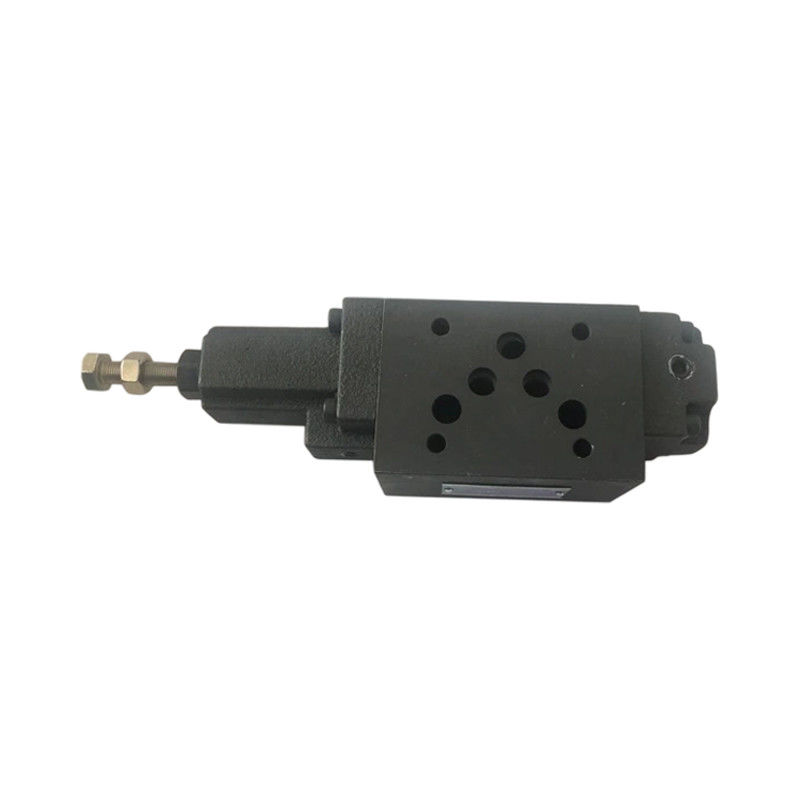

Sequence Modular Valves Counterbalance Modular Valves 01 Series MHP-01 MHA-01
Features
The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems.
Seric's 01 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines.
The valves have standardized mounting surface conforming to ISO 4401-AB-03-4-A and optimum thickness for the stacking.
Specifications
| Model Numbers |
Max. Operating Pressure
MPa (PSI) |
Max. Flow
L /min (U.S.GPM) |
Free Flow
L/min (U.S.GPM) |
| MHP-01-∗-30 |
25 (3630) |
35 (9.25) |
― |
| MHA-01-∗-30 |
35 (9.25) |
Graphic Symbols
Model Number Designation
| F- |
MHP |
-1 |
-C |
-30 |
| Special Seals |
Series Number |
Valve Size |
Pres. Adj. Range
Mpa (PSI) |
Design Number |
| F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) |
MHP: Sequence Valve for P-Line |
1 |
C: *-14★ (*-2030)
H: 7-21 (1020-3050) |
30 |
| MHA: Counterbalance Valve for A-Line |
★See the "Minimum Adjustment Pressure" of the next page for the item marked ∗.
Instructions
The minimum adjustment pressure (MHP-01) equals the value obtained from the minimum adjustment pressure characteristics plus the tank line back pressure of the next page. This back pressure should include the value of the T-line pressure drop characteristics of the valves stacked to the base plate side of the modular valve.
To make pressure adjustment, loosen the lock nut and turn the pressure adjustment screw clockwise or anticlockwise. For an increase of pressure, turn the screw clockwise. Be sure to re-tighten the lock nut firmly after making adjustment to the pressure.
The minimum adjustment pressure (MHA-01) equals the value obtained from the minimum adjustment pressure characteristics plus the outlet-side back pressure of the valve on the next page. The outlet-side back pressure should include the values of the A-line and T-line pressure drop characteristics of the valves to be stacked due to the valve with internal drain.
Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850
MHP-01-*-30
| Model No. |
L1 |
L2 |
| MHP-01-C |
151 (5.94) |
92 (3.62) |
| MHP-01-H |
166.5 (6.56) |
107.5 (4.23) |
Approx. Mass............ 1.1 kg (2.4 lbs.)
MHA-01-*-30
| Model No. |
L1 |
L2 |
| MHA-01-C |
171 (6.73) |
112 (4.41) |
| MHA-01-H |
186.5 (7.34) |
127.5 (5.02) |
Approx. Mass............ 1.3 kg (2.9 lbs.)
