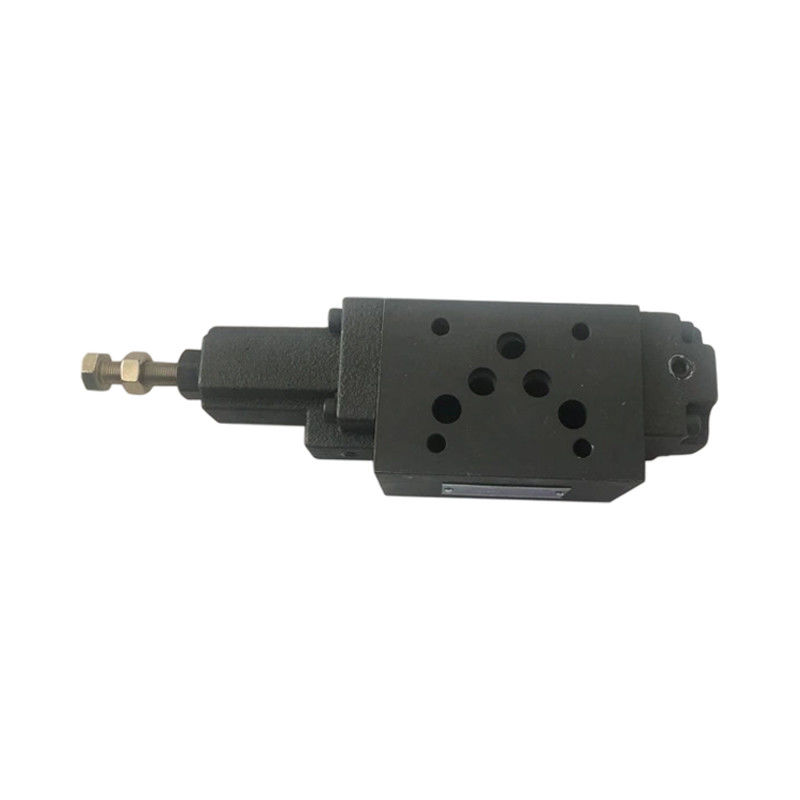

MHP-03 MHA-03 MHB-03 Hydraulic Sequence Control Valve Counterbalance Modular Valves

Name: MHP-03 MHA-03 MHB-03 Hydraulic Sequence Control Valve Counterbalance Modular Valves
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: 03 Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	03 Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

03 Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

MHB-03 Hydraulic Sequence Valve

Hydraulic Sequence Control Valve

Sequence Control Valve Counterbalance

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Sequence Modular Valves 03 Series Counterbalance Valves MHP-03 MHA-03 MHB-03

Features

The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems. Seric's 03 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines. The valves have standardized mounting surface conforming to ISO 4401-AC-05-4-A and optimum thickness for the stacking.

MHP-03 MHA-03 MHB-03 Hydraulic Sequence Control Valve Counterbalance Modular Valves 0

Specifications

Model Numbers	Max.Operating Pressure MPa(PSI)	Max. Flow L/min (U.S.GPM)	Max. Free Flow L/min (U.S.GPM)
MHP-03-*-20	25 (3630)	50 (13.2)	—
MHA-03--20 MHB-03--20	25 (3630)	50 (13.2)	70

Model Number Designation

F-	MHP	-3	-C	-20
Special Seals	Series Number	Valve Size	Pres. Adj. Range MPa(PSI)	Design Number
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required)	MHP: Sequence Valve for P-Line	3	N: -1.8(-260)^★ A:1.8-3.5(260-510) B:3.5-7(510-1020) C:7-14(1020-2030)	20
	MHA: Counterbalance Valve for A-Line MHB: Counterbalance Valve for B-Line	3		20

★See the "Minimum Adjustment Pressure" of the next page for the item m arked ∗.

Instructions

●The minimum adjustment pressure equals the value obtained from the minimum adjustment pressure characteristics plus the tank line back pressure of the next page. This back pressure should include the value of the T-line pressure drop characteristics of the valves stacked to the base plate side of the

modular valve.

●To make pressure adjustment, loosen the lock nut and turn the pressure adjustment screw clockwise or anticlockwise. For an increase of pressure, turn the screw clockwise. Be sure to re-tighten the lock nut firmly after making adjustment to the pressure.

MHP-03 MHA-03 MHB-03 Hydraulic Sequence Control Valve Counterbalance Modular Valves 1

Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850

MHP-03 MHA-03 MHB-03 Hydraulic Sequence Control Valve Counterbalance Modular Valves 2

MHP-03 MHA-03 MHB-03 Hydraulic Sequence Control Valve Counterbalance Modular Valves 3
