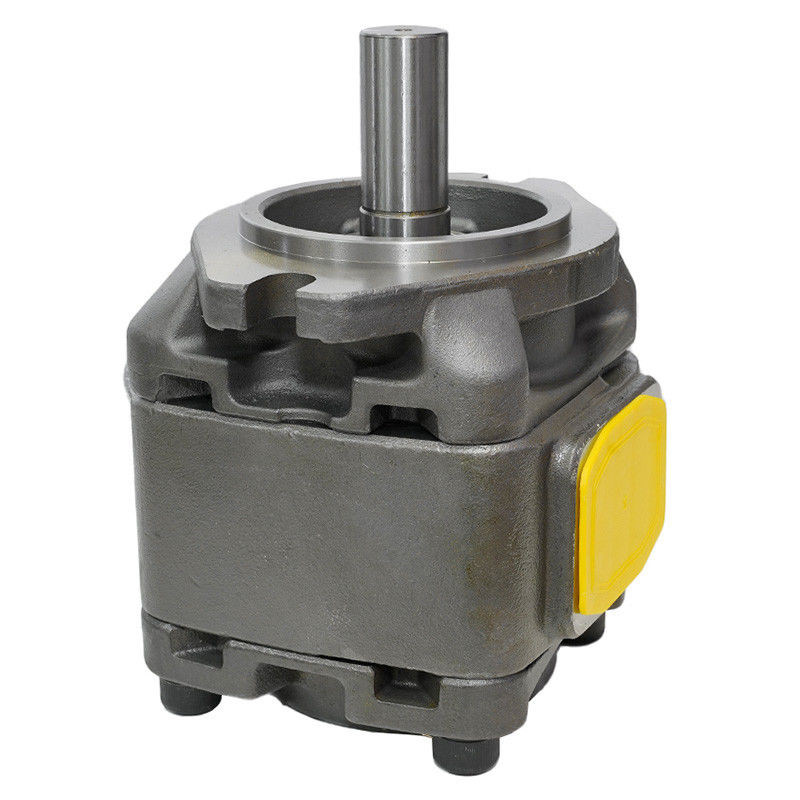

HG0 HG1 HG2 HG Series Internal Single Gear Pump High Pressure Gear Pump

Name: HG0 HG1 HG2 HG Series Internal Single Gear Pump High Pressure Gear Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: HG Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	HG Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

HG Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Internal Single Gear Pump

HG2 Single Gear Pump

Internal High Pressure Gear Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Internal Gear Pump Single Pump HG0 HG1 HG2 HG Series

Features

Adopting axial and radial pressure compensation design to maintain high volumetric efficiency even at low speed and low viscosity.

Ultra-low noise, using high-strength cast iron and a unique internal noise reduction design, making the noise lower.

Very low flow and pressure pulsation, and stable flow and pressure output can still be maintained at low speeds.

High pressure design, the maximum working pressure can reach 35MPa.

Wide speed range, the highest speed can reach 3000r/min.

Can be combined to form a double pump.

Insensitive to oil pollution and long service life.

It can be widely used in hydraulic systems in industries such as plastic machines, shoe machines, die-casting machinery, and forklifts, and is especially suitable for energy-saving systems driven by servo inverters.

Structure

The HG series hydraulic pump is a backlash compensation internal gear pump with a fixed displacement.

lts basic composition is: front cover (1), pump body (2), rear cover (3), gear shaft (4), ring gear (5), sliding bearing (6), front and rear side plates (7) and positioning Rod (8), and the radial compensation function composed of the crescent sub-plate (9), the crescent main plate (10) and the plastic rod (11).

HG0 HG1 HG2 HG Series Internal Single Gear Pump High Pressure Gear Pump 0

Specifications

Serial Number	Specification	Displacement (mL/r)	Work pressure (Mpa)		Range of rotation (r/min)		Weight (KG)
Serial Number	Specification	Displacement (mL/r)	Rated	Highest	Highest	Lowest	Weight (KG)
HG0	5	5.2	31.5	35	3000	600	4.4
	8	8.2	31.5	35	3000	600	4.6
	10	10.2	31.5	35	3000	600	4.8
	13	13.3	31.5	35	3000	600	4.9
	16	16	31.5	35	3000	600	5.2
	20	20	25	30	3000	600	5.6
HG1	25	25.3	31.5	35	3000	200	14.5
	32	32.7	31.5	35	3000	200	15
	40	40.1	31.5	35	3000	200	16
	50	50.7	31.5	35	3000	200	17
	63	63.7	25	30	3000	200	18.5
HG2	80	81.4	31.5	35	3000	200	43.5
	100	100.2	31.5	35	3000	200	45.5
	125	125.3	31.5	35	3000	200	48
	145	145.2	25	35	3000	200	50
	160	162.8	21	35	3000	200	52

Model Number Designation

HG	1	-40	-01	R	-V	P	C
Pump series	Serial number	Specification	Design number	Rotation direction (viewed from the shaft end)	Sealed form	Shaft extension form	Flange installation form
HG: Internal gear pump	0: Displacement 5~20 1: Displacement 25~63 2: Displacement 80~160	Displacement (mL/r): 5 8 10 13 16 20 25 32 40 50 63 80 100 125 145 160	01	R: Clockwise L: Counterclockwise	V: Fluororubber	P: Flat key shaft S: Spline shaft	C: SAE 2 hole

Note: Counter clockwise rotation limited to HG series single pump
