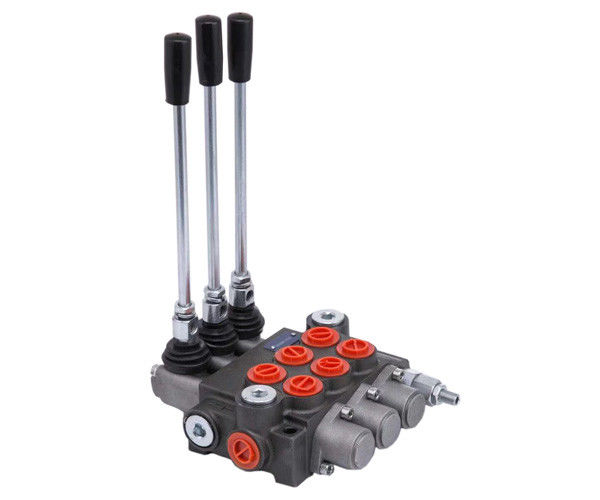

Manual Hydraulic Directional Control Valves P40 Series Monoblock
P40 Series Features
P40 series integral multi-directional valve
P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
Inner check valve:
The check valve inside the valve body is to insure the hydraulic oil not to be returned.
Inner relief valve:
The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way:
Parallel circuit, power beyond option.
Control Way:
Manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction:
monoblock construction, 1-6 levers.
Spool Function:
O,Y, P, A.
Option:
Hydraulic lock is available to be added on A and B port.
Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
Specifications
|
Parameter
|
Metric Value
|
Imperial Value
|
|
Nominal flow rate
|
40 L/min
|
10.6 US GPM
|
|
Operating pressure (max)
|
250 bar
|
3626 psi
|
|
Operating range
|
15 ~ 75 mm²/s
|
15 ~ 75 cst
|
|
Minimum viscosity
|
12 mm²/s
|
12 cst
|
|
Maximum viscosity
|
400 mm²/s
|
400 cst
|
|
Ambient temperature range
|
-40° ~ 80°C
|
-40° ~ 176°F
|
|
Structure
|
Monoblock: 1 - 7 sections
|
-
|
