P40 Series 1P40 Monoblock Valve Manual Directional Control Valves
P40 Series Features
The P40 hydraulic distributor controls the on/off operation of hydraulic fluid and diverts it between fluid sources (hydraulic pumps), actuators (hydraulic cylinders, motors, etc.), and the reservoir. It is available with up to 6 spools.
Product Description

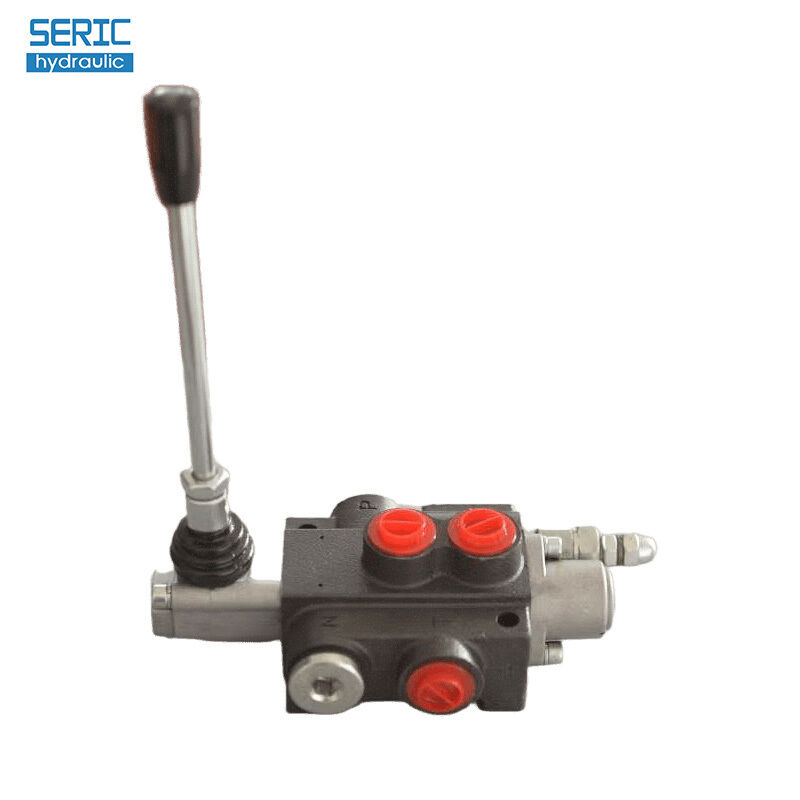

- Monoblock hydraulic joystick control valve: Compact design for space-constrained installations
- High-tensile cast iron monoblock structure for durability
- Precision-ground, hard chrome-plated spools ensure extended service life
- Versatile handle mounting: Vertical or horizontal options
Specifications
|
Parameter
|
Metric Value
|
Imperial Value
|
|
Nominal flow rate
|
40 L/min
|
10.6 US GPM
|
|
Operating pressure (max)
|
250 bar
|
3626 psi
|
|
Operating range
|
15 ~ 75 mm²/s
|
15 ~ 75 cst
|
|
Minimum viscosity
|
12 mm²/s
|
12 cst
|
|
Maximum viscosity
|
400 mm²/s
|
400 cst
|
|
Ambient temperature range
|
-40° ~ 80°C
|
-40° ~ 176°F
|
|
Structure
|
Monoblock: 1 - 7 sections
|
-
|
Applications
Suitable for loaders, special-purpose vehicles, truck-mounted cranes, wreckers, scrubbers, and dynamic compactors. Effectively controls actuators such as motors and hydraulic cylinders.
