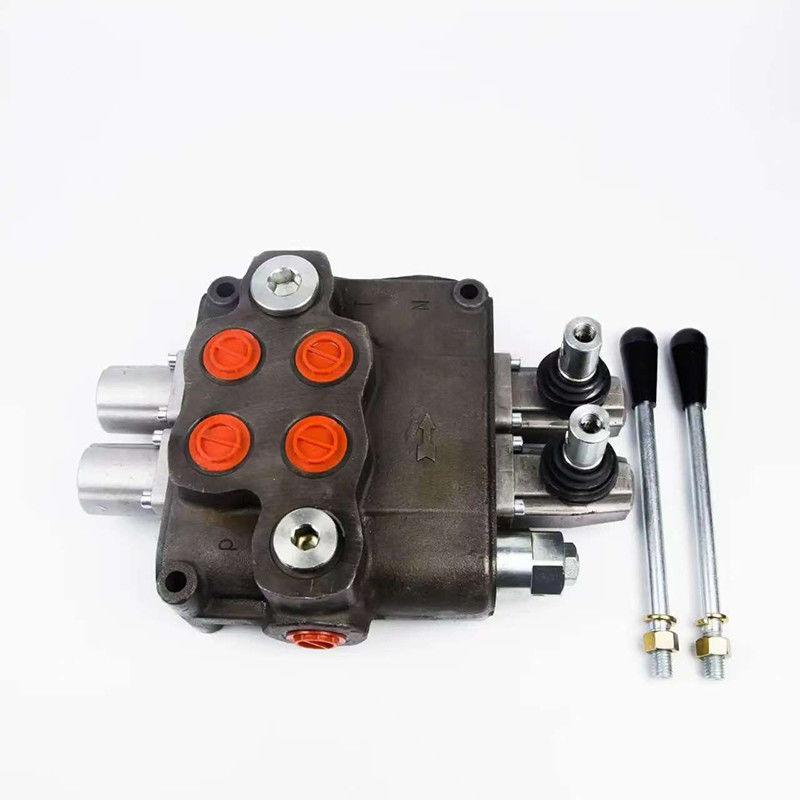

P120 Series Monoblock Directional Control Valve Manual Valve
P120 Series Features
P120 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
Inner check valve:
The check valve inside the valve body is to insure the hydraulic oil not to be returned.
Inner relief valve:
The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way:
Parallel circuit, power beyond option.
Control Way:
Manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction:
monoblock construction, 1-6 levers.
Spool Function:
O,Y, P, A.
Option:
Hydraulic lock is available to be added on A and B port.
Available manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.
Specifications
| Parameter |
Metric Value |
Imperial Value |
| Nominal flow rate |
120 L/min |
31.5 US GPM |
| Operating pressure (max) |
250 bar |
3626 psi |
| Operating range |
15 ~ 75 mm²/s |
15 ~ 75 cst |
| Minimum viscosity |
12 mm²/s |
12 cst |
| Maximum viscosity |
400 mm²/s |
400 cst |
| Ambient temperature range |
-40° ~ 80°C |
-40° ~ 176°F |
| Structure |
Monoblock: 1 - 7 sections |
- |
