DMG Series Manually Operated Directional Valve Manual Directional Valve

Name: DMG Series Manually Operated Directional Valve Manual Directional Valve
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: DMG Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	DMG Series

Detail Information

Place of Origin:

Guangzhou

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

DMG Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

DMG Series manual directional valve

manually operated directional control valve

manual hydraulic directional valve

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

DMG Series Manually Operated Directional Valve Manual Directional Valve

Features

The DMG series manual directional control valves deliver exceptional control over hydraulic systems, making them an ideal choice for a wide range of industrial applications. Engineered for manual spool position adjustment, these valves ensure precise oil flow direction, thereby enhancing system flexibility and performance. Compliant with international standards, the series offers robust durability, reliable operation, and seamless compatibility with various hydraulic systems.

Both the DMG series valves are available in multiple sizes and configurations, including spring-centered, non-sprung positioned and spring-biased types, to meet diverse operational requirements. Featuring ISO-standard mounting and a compact design, these valves boast versatile applications and easy installation.

Model Number Designation

F-	DM	T	-03	-2	B	2	A	-50	*
Special Seals	Series Number	Type of Connec-tion	Valve Size	No. of Valve Position	Spool-Spring Arrangement	Spool Type	Special Two Position Valve	Design Number	Design Standard
F: Special Seals for Phosphate ester type fluids (Omit if not required)	DM: Manually Operated Directional Valves	T: Threaded Connec-tion	3	3 2	C: Spring Centred D: No-Spring Detented B: Spring Offset	2,3 4,40 5,6 60,7 8,9 10,11 12	A, B (Omit if not required)	50	None: Japanese Std. "JIS" 80: European Design Std. 90: N. American Design Std.
			06(Piping size 3/4) 06X(Piping size 1)					30
			10(Piping size 1-1/4) 10X(Piping size 1-1/2)					30
		G: Sub-plate Mounting	01					10	None: Japanese Std. "JIS" and Euro-pean Design Std. 90: N. American Design Std.
			03					50
			04					21
			06					50
			10					40

Specifications

Model Numbers	Maximum Flow L/min (U.S.GPM)				Max. Operating Pressure MPa (PSI)	Max. T-Line Back Pressure MPa (PSI)	Approx. Mass kg (lbs.)
	7 Mpa (1020 PSI)	14 MPa (2030 PSI)	21 MPa (3050 PSI)	31.5 MPa (4570 PSI)
DMG-01-3C-10	35 (9.2)	35 (9.2)	35 (9.2)	—	25 (3630)	14 (2030)	1.8 (4.0)
DMG-01-3D-10
DMG-01-2D-10
DMG-01-2B-10

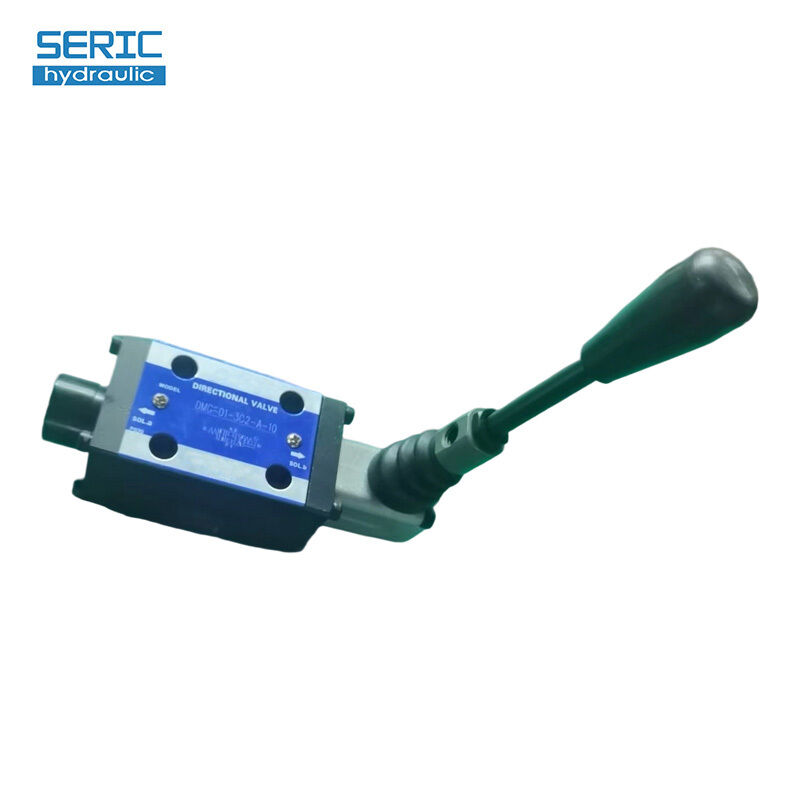

DMG Series Manually Operated Directional Valve Manual Directional Valve 0

DMG Series Manually Operated Directional Valve Manual Directional Valve 1

DMG Series Manually Operated Directional Valve Manual Directional Valve 2

DMG Series Manually Operated Directional Valve Manual Directional Valve 3
