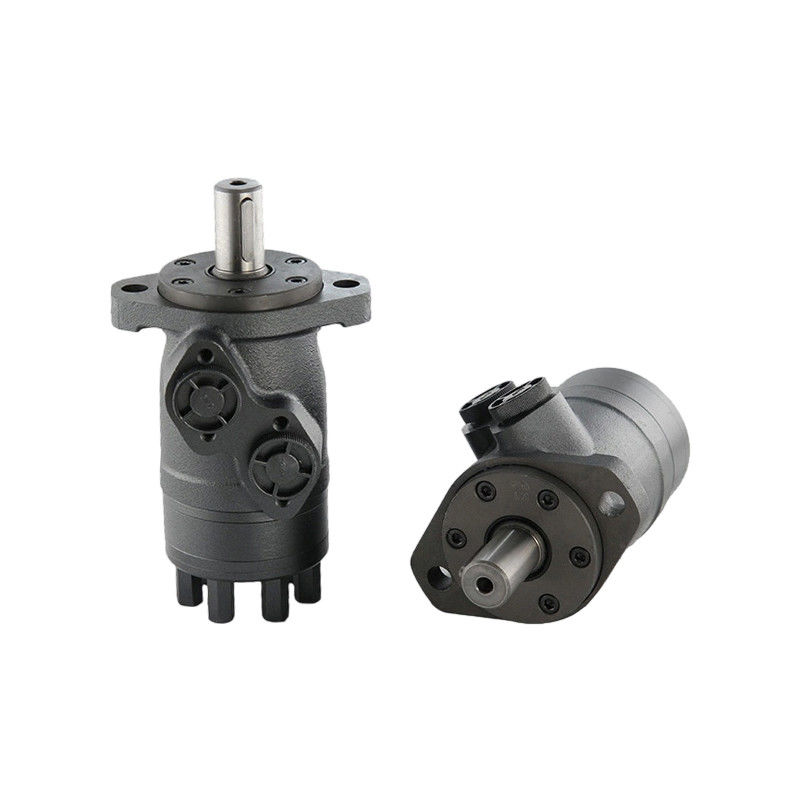

BM1 Series Cycloid Hydraulic Orbit Motor Interchangeable With OMP Series

Name: BM1 Series Cycloid Hydraulic Orbit Motor Interchangeable With OMP Series
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: BM1 Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	BM1 Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

BM1 Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

BM1 Hydraulic Orbit Motor

Hydraulic Orbit Motor Interchangeable

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

BM1 series cycloid hydraulic motor (can interchange with OMP series)

Features

BM1 motor is a small volume spool valve type motor.

Characteristic features:

1.Compact design,which provide small volume,high power and low weight.

2.Credible design for shaft seal, which can bear high pressure and be used in parallel or in series.

3.Direction of shaft rotation and speed can be controlled easily and smoothly.

4.Best combination of efficiency and economy in medium load applications.

Specifications

Displacement (ml/r)		50	63	80	100	125	160	200	250	315	400
Flow (LPM)	Continuous	38	45	58	58	58	58	58	58	58	58
Flow (LPM)	Intermittent	45	53	69	69	69	69	69	69	69	69
Speed (RPM)	Continuous	698	663	685	560	456	356	285	236	176	145
Speed (RPM)	Intermittent	853	775	820	671	548	426	341	282	210	173
Pressure (Mpa)	Continuous	12.5	12.5	12.5	12.5	12.5	12.5	11	10	9	9
Pressure (Mpa)	Intermittent	14	14	14	14	14	12.5	12.5	12.5	12.5	11
Torque (N·m)	Continuous	74	87	124	155	194	227	282	302	365	456
Torque (N·m)	Intermittent	86	98	141	176	221	260	318	383	406	521

1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.

2. Motor should not work under the highest pressure and the maximum speed.

3. The running time should not exceed 10% under intermittent working conditions.

4. The maximum working temperature is 80°.

5. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa. A leaking pipe is needed when exceeding.

6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.

7. Recommending N68anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
