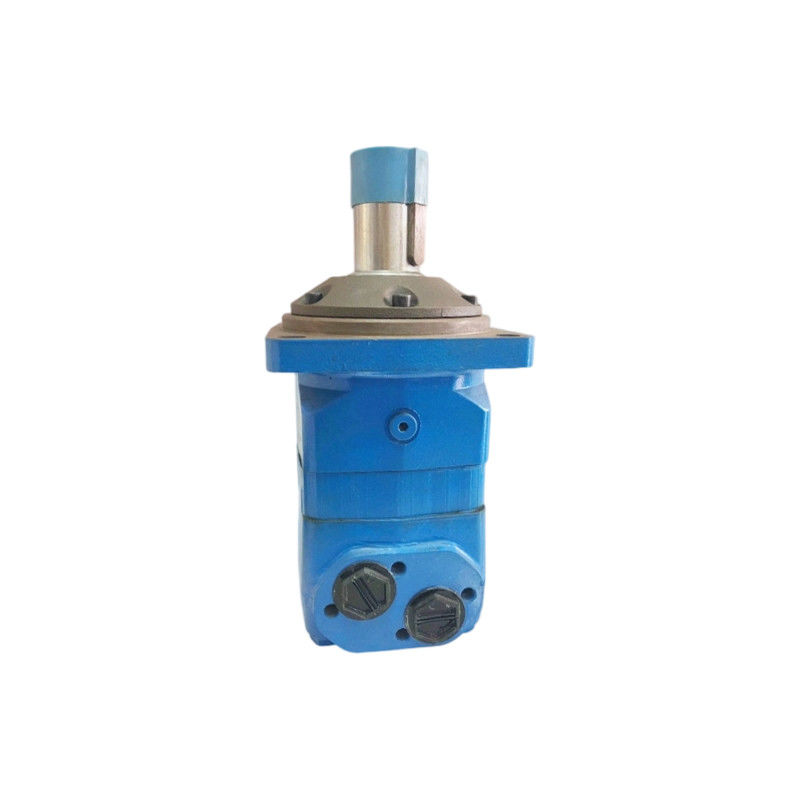

BMV Series Orbital Motors Cycloid Hydraulic Motor
Features
Advanced Structure: The BMV series cycloid hydraulic motors feature an advanced planar valve-plate structure. With a stud-inserted rotor-stator pair, they offer high working pressure, high efficiency, and long service life. Multifunctional variants can be designed per user needs.
Efficient Operation: Optimized rotor-stator design results in low starting pressure and high, sustained efficiency.
High Load-Bearing Capacity: High working pressure enables large torque output. Tapered roller bearings allow strong axial and radial load bearing, letting the motor directly drive work mechanisms, expanding applications.
Precision and Durability: The planar valve-plate ensures high precision and strong self-compensation after wear, maintaining high volumetric efficiency, long life, and stable speed under load.
Main Specification
| Type |
BMV 315
|
BMV 400 |
BMV 500 |
BMV 630 |
BMV 800 |
BMV 1000 |
Displacement
(cm³/rev.) |
333 |
419 |
518 |
666 |
801 |
990 |
Speed
(rpm) |
Rated |
335 |
270 |
215 |
170 |
140 |
105 |
| Continuous |
510 |
500 |
400 |
320 |
250 |
200 |
| Intermittent |
630 |
600 |
480 |
380 |
300 |
240 |
Torque
(N·m) |
Rated |
730 |
1020 |
1210 |
1422 |
1590 |
2015 |
| Continuous |
920 |
1180 |
1460 |
1660 |
1880 |
2015 |
| Intermittent |
1110 |
1410 |
1760 |
1940 |
2110 |
2280 |
| Peak |
1290 |
1640 |
2050 |
2210 |
2470 |
2400 |
Output Power
(kW) |
Continuous |
38 |
47 |
47 |
40 |
33 |
28.6 |
| Intermittent |
46 |
56 |
56 |
56 |
44 |
40 |
Working Pressure Difference
(MPa) |
Rated |
16 |
16 |
16 |
16 |
14 |
14 |
| Continuous |
20 |
20 |
20 |
18 |
16 |
14 |
| Intermittent |
24 |
24 |
24 |
21 |
18 |
16 |
| Peak |
28 |
28 |
28 |
24 |
21 |
18 |
Flow
(L/min) |
Rated |
110 |
110 |
110 |
110 |
110 |
110 |
| Continuous |
160 |
200 |
200 |
200 |
200 |
200 |
| Intermittent |
200 |
240 |
240 |
240 |
240 |
240 |
Inlet Oil Pressure
(MPa) |
Rated |
21 |
21 |
21 |
21 |
21 |
21 |
| Continuous |
21 |
21 |
21 |
21 |
21 |
21 |
| Intermittent |
25 |
25 |
25 |
25 |
25 |
25 |
| Peak |
30 |
30 |
30 |
30 |
30 |
30 |
Weight
(kg) |
31.8 |
32.6 |
33.5 |
34.9 |
36.5 |
38.6 |
- The rated speed and torque refer to the output values under rated flow and pressure.
- The continuous value refers to the maximum value at which the motor with this displacement can operate continuously.
- The intermittent value refers to the maximum value at which the motor with this displacement can operate for 6 seconds within 1 minute.
- The peak value refers to the maximum value at which the motor with this displacement can operate for 0.6 seconds within 1 minute.
