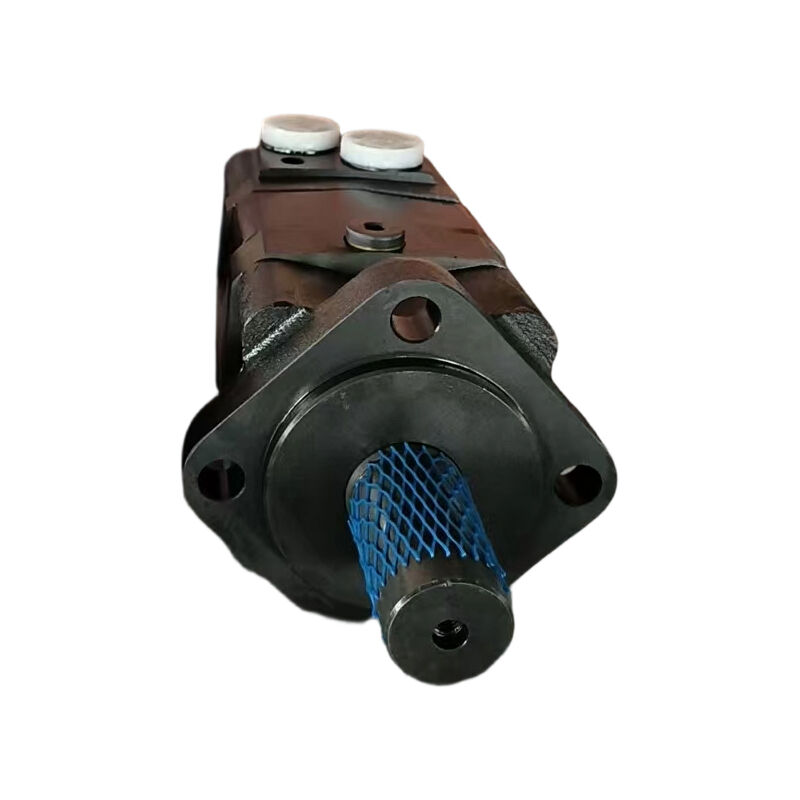

OMS Series Hydraulic Orbital Motor
Features
l The O-Series motors offer unparalleled flexibility. Capable of withstanding ultra-high pressure levels, they meet requirements ranging from light to medium and heavy-duty operations while delivering extra power output.
l The O-Series motors deliver premium performance, fully covering light, medium, and heavy-duty application scenarios.
l The O-Series represents a flexible and safe choice, suitable for most application requirements.
l Typical applications include: harvesters, drilling rigs, salt spreaders, lawnmowers, and forestry machinery.
Specifications
| Motor size |
80 |
100 |
125 |
150 |
200 |
250 |
315 |
400 |
500 |
| Geometric displacement |
cm³ |
80.5 |
100 |
125.7 |
159.7 |
200 |
250 |
314.9 |
393 |
488 |
| [in³] |
[4.91] |
[6.10] |
[7.67] |
[9.75] |
[12.20] |
[15.26] |
[19.22] |
[23.98] |
[29.78] |
| Max. speed |
min⁻¹
[rpm] |
cont. |
810 |
750 |
600 |
470 |
375 |
300 |
240 |
190 |
155 |
| int.¹ |
1000 |
900 |
720 |
560 |
450 |
360 |
285 |
230 |
185 |
| Max. torque |
Nm
[lbf·in] |
cont. |
240
[2120] |
305
[2700] |
375
[3320] |
490
[4340] |
610
[5400] |
720
[6370] |
825
[7300] |
865
[7660] |
850
[7520] |
| int.¹ |
310
[2740] |
390
[3450] |
490
[4340] |
600
[5310] |
720
[6370] |
870
[7700] |
1000
[8850] |
990
[8760] |
990
[8760] |
| Max. output |
kW
[hp] |
cont. |
20.8
[27.9] |
24.1
[32.3] |
24.1
[32.3] |
22.1
[29.6] |
22.1
[29.6] |
19.4
[26.0] |
20.1
[27.0] |
14.8
[19.8] |
12.1
[16.2] |
| int.¹ |
19.5
[26.2] |
22.5
[30.2] |
22.5
[30.2] |
23.0
[30.8] |
22.0
[29.5] |
18.0
[24.1] |
17.0
[22.8] |
12.5
[16.8] |
10.5
[14.1] |
| Max. pressure drop |
bar
[psi] |
cont. |
210
[3050] |
210
[3050] |
210
[3050] |
210
[3050] |
210
[3050] |
200
[2900] |
200
[2900] |
120
[1740] |
120
[1740] |
| int.¹ |
275
[3990] |
275
[3990] |
275
[3990] |
260
[3770] |
250
[3630] |
250
[3630] |
240
[3480] |
190
[2760] |
140
[2030] |
| peak² |
295
[4280] |
295
[4280] |
295
[4280] |
280
[4060] |
270
[3920] |
270
[3920] |
260
[3770] |
210
[3050] |
160
[2320] |
| Max. oil flow |
l/min
[USgal/min] |
cont. |
65
[17.2] |
75
[19.8] |
75
[19.8] |
75
[19.8] |
75
[19.8] |
75
[19.8] |
75
[19.8] |
75
[19.8] |
75
[19.8] |
| int.¹ |
80
[21.1] |
90
[23.8] |
90
[23.8] |
90
[23.8] |
90
[23.8] |
90
[23.8] |
90
[23.8] |
90
[23.8] |
90
[23.8] |
| Max. starting pressure with unloaded shaft |
bar
[psi] |
12
[175] |
10
[145] |
10
[145] |
8
[115] |
8
[115] |
8
[115] |
8
[115] |
8
[115] |
8
[115] |
| Min. starting torque |
at max. press. drop cont. |
180
[1590] |
230
[2040] |
290
[2570] |
370
[3270] |
470
[4160] |
560
[4960] |
710
[6280] |
710
[6280] |
660
[5840] |
| at max. press. drop int.¹ |
235
[2080] |
300
[2660] |
380
[3360] |
460
[4070] |
560
[4960] |
700
[6200] |
850
[7520] |
840
[7430] |
770
[6820] |
1) Intermittent operation: the permissible values may occur for max. 10% of every minute.
2) Peak load: the permissible values may occur for max. 1% of every minute.
