MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves

Name: MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: 01 Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	01 Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

01 Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

MPA-01 Hydraulic Modular Valve

MPB-01 Hydraulic Modular Valve

Hydraulic Pilot Operated Check Valves

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Pilot Operated Check Valves MPA-01 MPB-01 MPW-01 01 Series Modular Valves

Features

The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems.

Seric's 01 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines.

The valves have standardized mounting surface conforming to ISO 4401-AB-03-4-A and optimum thickness for the stacking.

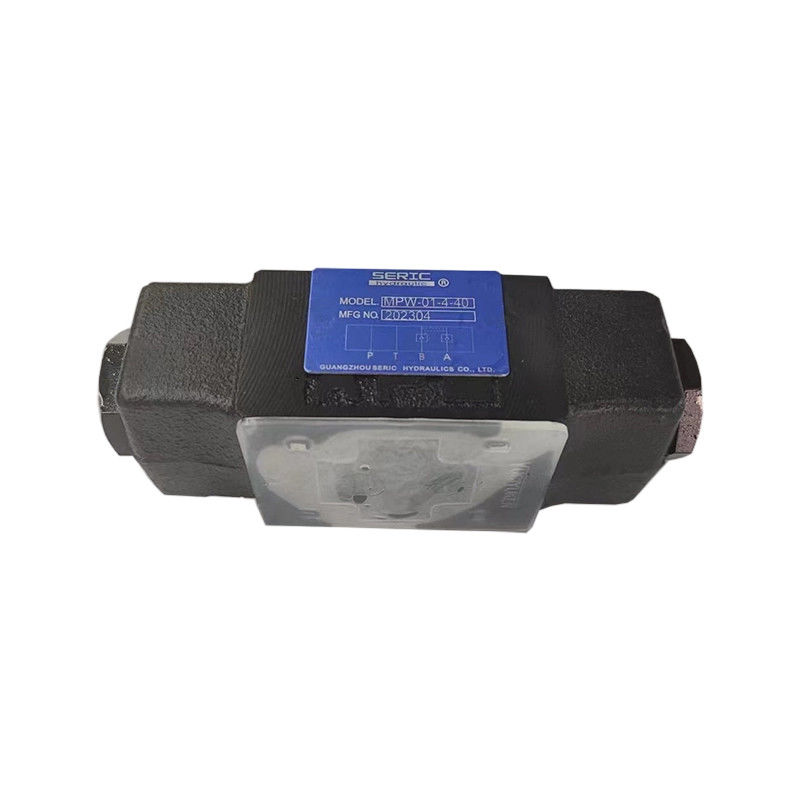

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 0

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 1

Specifications

Model Numbers	Max. Operating Pressure MPa (PSI)	Max. Flow L /min (U.S.GPM)
MPA-01-∗-40	31.5 (4570)	35 (9.25)^★
MPB-01-∗-40
MPW-01-∗-40

Model Number Designation

F-	MPW	-1	2	-40
Special Seals	Series Number	Valve Size	Pres. Adj . Range MPa (PSI)	Design Number
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required)	MPA: Pilot Operated Check Valve for A-Line	1	2: 0.2 (29) 4: 0.4 (58)	40
	MPB: Pilot Operated Check Valve for B-Line
	MPW: Pilot Operated Check Valve for A&B-Lines

Typical Performance Characteristics

Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 2

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 3

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 4

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 5

MPA-01-∗-40, MPB-01-∗-40, MPW-01-∗-40

MPA-01 MPB-01 MPW-01 Hydraulic Modular Valve Pilot Operated Check Valves 6

Approx. Mass...... 1.2 kg (2.6 lbs.)
