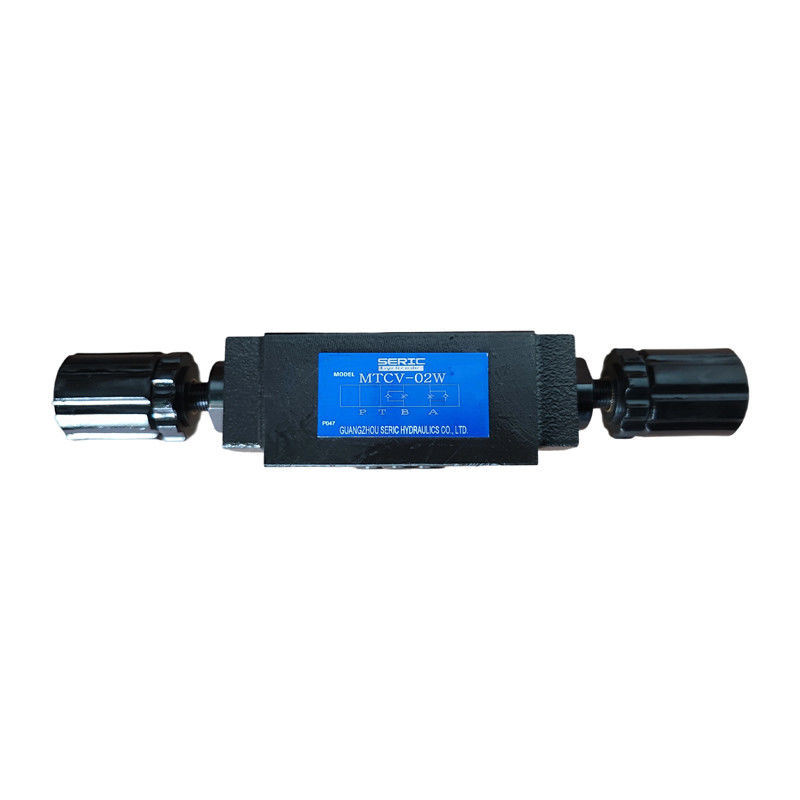

Modular Hydraulic Throttle Check Valve MTV Series MTV-02 MTV-03

Name: Modular Hydraulic Throttle Check Valve MTV Series MTV-02 MTV-03
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: MTV Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	MTV Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

MTV Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Modular Hydraulic Throttle Check Valve

Hydraulic Throttle Check Valve MTV-03

Hydraulic Throttle Check Valve MTV-02

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Modular Throttle Valves MTV Series MTV-02 MTV-03

Features

Compared with traditional hydraulic valves, the biggest feature of modular control valves is that they can achieve system installation without the need for piping, thus reducing system leakage, vibration, and noise.

Compared to traditional pipeline connections, modular control valves do not require special installation skills and are very convenient for changing the functionality of hydraulic systems. Due to the absence of piping, the overall reliability of the system is enhanced, and it is easy for daily inspection and maintenance.

It is widely applicable to various industrial hydraulic systems, such as injection molding machine hydraulic systems, CNC machine tool hydraulic systems, metallurgical equipment hydraulic systems, etc.

Symbol

Modular Hydraulic Throttle Check Valve MTV Series MTV-02 MTV-03 0

Specifications

Model	Max. operating pressure (kgf/cm²)	Max. flow (L/min)	Weight (kg)
MTV-02-※	250	35	1.2
MTV-03-※	250	70	2.5

Model Number Designation

MTV	02	P	L
SERIES NUMBER	VALVE SIZE	CONTROL OIL PORT	KNOB TYPE
MTV	02: 1/4" 03: 3/8"	P: P port T: T port W: A, B port C: P, T port	K: Haft turning knob bolt rod adjust L: Inner hexangular bolt rod adjust
