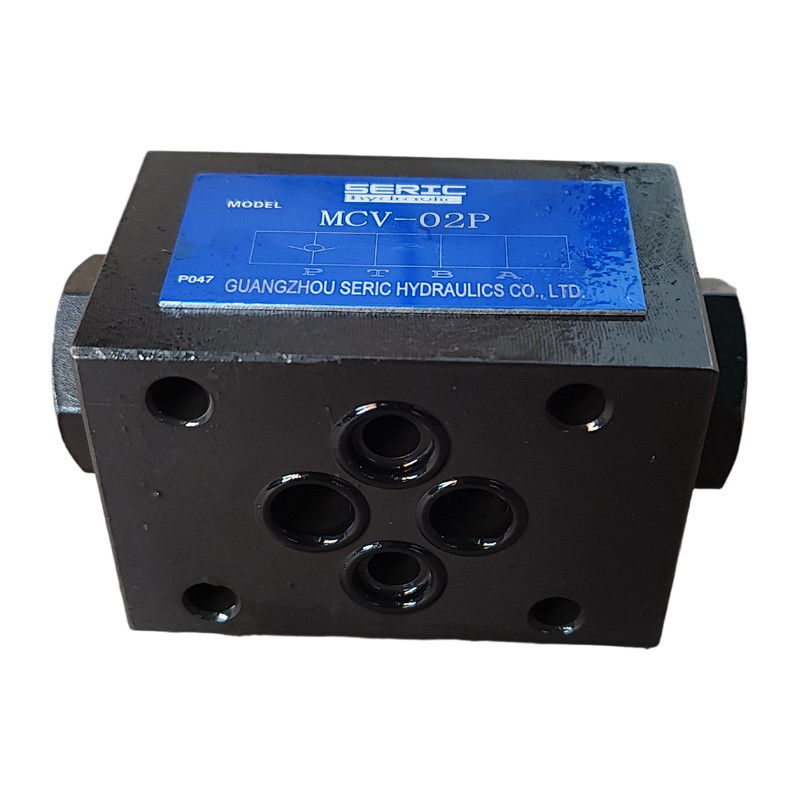

MCV-02 MCV-03 Modular Check Valves Stacked One Way Pressure Maintenance Valve

Name: MCV-02 MCV-03 Modular Check Valves Stacked One Way Pressure Maintenance Valve
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: MCV Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	MCV Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

MCV Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

MCV-02 Modular Check Valves

MCV-03 Modular Check Valves

One Way Pressure Maintenance Valve

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Modular Check Valves MCV Series MCV-02 MCV-03 Stacked One-way Pressure Maintenance Valve

Features

Compared with traditional hydraulic valves, the biggest feature of modular control valves is that they can achieve system installation without the need for piping, thus reducing system leakage, vibration, and noise.

Compared to traditional pipeline connections, modular control valves do not require special installation skills and are very convenient for changing the functionality of hydraulic systems. Due to the absence of piping, the overall reliability of the system is enhanced, and it is easy for daily inspection and maintenance.

It is widely applicable to various industrial hydraulic systems, such as injection molding machine hydraulic systems, CNC machine tool hydraulic systems, metallurgical equipment hydraulic systems, etc.

Symbol

MCV-02 MCV-03 Modular Check Valves Stacked One Way Pressure Maintenance Valve 0

Specifications

Model	Max. operating pressure (kgf/cm²)	Cracking pressure (kgf/cm²)	Max. flow (L/min)	Weight (kg)
MCV-02-※	250	05: 0.35 50: 3.5	35	1.1
MCV-03-※	250	05: 0.35 50: 3.5	70	2.4

Model Number Designation

MCV	02	P	05
SERIES NUMBER	VALVE SIZE	CONTROL OIL PORT	CRACKING PRESSURE
MCV	02: 1/4” 03: 3/8”	P: P port T: Tport A: A port B: B port W: A, B port	05: 0.35 kgf/cm² 50: 3.5 kgf/cm²
