Home > products >

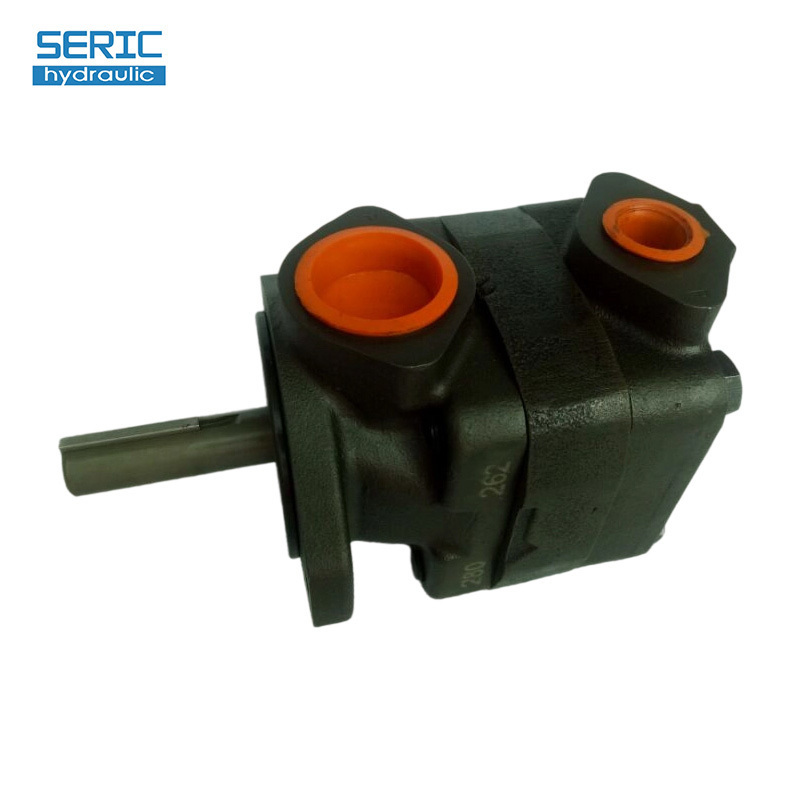

V20 Series Vane Pump 19.5 cm³/r Displacement for Industrial Machinery

Name: V20 Series Vane Pump 19.5 cm³/r Displacement for Industrial Machinery
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

V20 Series hydraulic vane pump

19.5 cm³/r vane pump

industrial hydraulic vane pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Vane Pump Single Pump V20 Series

Features

Designed for a wide array of low-to-medium pressure applications, the V20 series of vane pumps are available in an extensive range of displacements. They are commonly employed as pilot and auxiliary pumps in complex industrial systems, as well as in heavy-duty trucks and interstate coaches.

V20 Type Single Pump Operating Specifications

Series	U.S. GPM	Displ. (cm³/r)	Max. Operating Pressure (MPa)	Max. Speed (rpm)	Min. Speed (rpm)
V20	6	19.5	17.5	3400	600
	7	22.8	17.5	3000
	8	26.5	17.5	2800
	9	29.7	17.5	2800
	11	36.4	17.5	2500
	12	39	16	2400
	13	42.4	16	2400

V20 Type Single Pump-Model Code

V20	-1	P	11	P	-1	C	11	R
Series	Mounting	Inlet Port Connections	U.S. GPM	Outlet Port Connections	Shafts	Outlet Positions	Design Number	Rotaiton
V20	1-2 bolt flange 6-2 bolt flange (SAE"B")	P-1 1/4" NPT thd. S-st. thd.	6,7,8, 9,11, 12,13,	P-1/2 NPT thd. S-st.thd.	1-str key 11-spline 38-spline 62-SAE A spline	(viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet	11	(Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise
