Home > products >

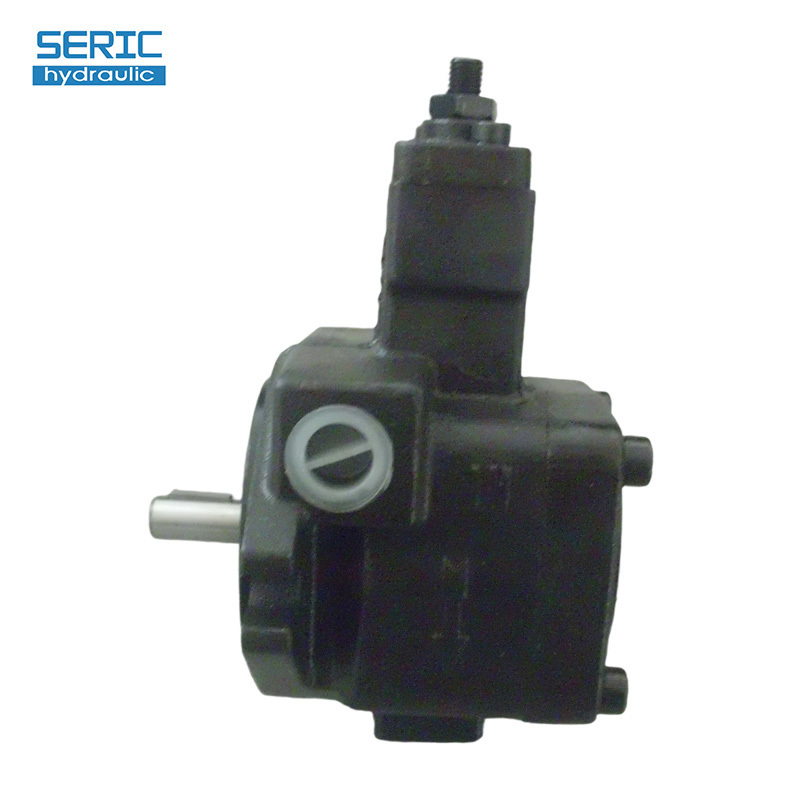

VP-20 Hydraulic Vane Pump Single Pump

Name: VP-20 Hydraulic Vane Pump Single Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: VP Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	VP Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

VP Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

VP-20 hydraulic vane pump

20 L/min hydraulic pump

0.8-2.0 Mpa vane pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

VP Series Single Pump Vane Pump VP-08 VP-12 VP-15 VP-20 VP-30 VP-40

Features

Utilizing precision machining technology, these pumps feature automatic displacement control and preset pressure compensation. They deliver high efficiency, low heat generation, and energy-saving operation.

With low noise levels and rapid response characteristics, they perform with high efficiency and excellent stability. Their simple structure ensures easy operation and maintenance.

Equipped with an adjustable mechanism, the vane pumps allow flexible regulation of flow and pressure, making them ideally suited for CNC lathe applications and shoemaking machinery.

Designed for longevity, these compact and robust pumps offer space-saving installation, economical operation, and direct connectivity with electric motors.

Specifications

Model	Flow 0.35Mpa 1800rpm (L/min)	Adjusting Pressure (Mpa)	Speed (r/min)	Rotation (View from shaft)	Input power KW(HP)
Model	Flow 0.35Mpa 1800rpm (L/min)	Adjusting Pressure (Mpa)	Speed (r/min)	Rotation (View from shaft)	1800r/min	1500r/min
VP-12-20	12	0.8-2.0	800-1800	Clockwise	0.37(0.5)	0.37(0.5)
VP-12-35		1.5-3.5			0.75(1)	0.55(1)
VP-12-55		3.0-5.5			1.1(1.5)	0.75(1)
VP-12-70		5.0-7.0			1.5(2)	1.5(2)
VP-15-20	15	0.8-2.0			0.5(1)	0.55(1)
VP-15-35		1.5-3.5			1.1(1.5)	0.75(1)
VP-15-55		3.0-5.5			1.5(2)	1.1(2)
VP-15-70		5.0-7.0			1.5(2)	1.5(2)
VP-20-20	20	0.8-2.0			0.75(1)	0.55(1)
VP-20-35		1.5-3.5			1.1(1.5)	1.1(2)
VP-20-55		3.0-5.5			1.5(2)	1.5(2)
VP-20-70		5.0-7.0			2.2(3)	2.2(3)
VP-30-20	30	0.8-2.0			1.1(2)	0.75(1)
VP-30-35		1.5-3.5			1.5(2)	1.5(2)
VP-30-55		3.0-5.5			2.2(3)	2.2(3)
VP-30-70		5.0-7.0			3.75(5)	3.0(5)
VP-40-20	40	0.8-2.0			1.5(2)	1.1(2)
VP-40-35		1.5-3.5			2.2(3)	2.0(3)
VP-40-55		3.0-5.5			3.75(5)	3.0(5)
VP-40-70		5.0-7.0			5.5(7.5)	4.0(5)
