Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ

Name: Double Hydraulic Vane Pump VQ Series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: VQ Series
Price: 220.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	VQ Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

VQ Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Double Hydraulic Vane Pump

Hydraulic Vane Pump 2520VQ

Hydraulic 3520VQ Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD220.00

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

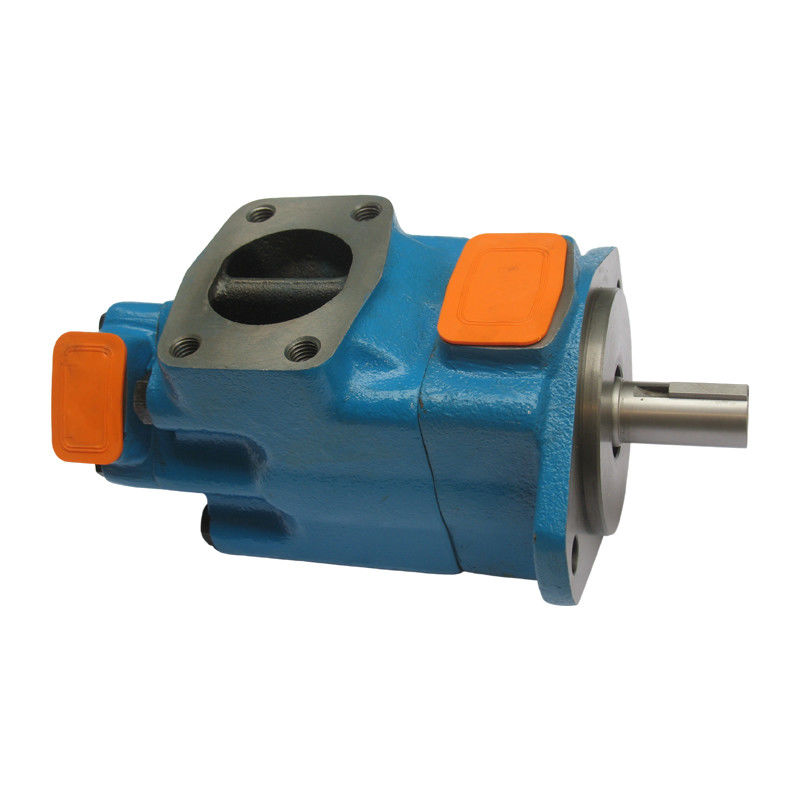

Hydraulic Vane Pump Double Pump VQ series 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ

Features

Double pump combination of differing displacements permits simper circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with the benefit of low noise levels.

2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ, each section pump flow code, see single pump technical data.

Specifications

Model Series	Shaft End Pump						Cover End Pump						Wt. kg (lb.)
Model Series	Delivery USgpm @ 1200 r/min 7 bar (100 psi)	Displ. cm³/r (in³/r)	Max. r/min	Max. bar (psi)	Typical del. L/min (USgpm) @ max. speed & pressure	Typical input kW (hp) @ max. speed & pressure	Delivery USgpm @ 1200 r/min 7 bar (100 psi)	Displ. cm³/r (in³/r)	Max. r/min	Max. bar (psi)	Typical del. L/min (USgpm) @ max. speed & pressure	Typical input kW (hp) @ max. speed & pressure	Wt. kg (lb.)
2520VQ	12	40.2 (2.45)	2700	210 (3000)	88.5 (23)	41.0 (55)	5	18.0 (1.10)	2700	210 (3000)	43.1 (11)	17.9 (24)	20.5
	14	45.4 (2.77)	2700	210 (3000)	103.8 (27)	46.6 (62.5)	8	27.4 (1.67)	2700	210 (3000)	65.4 (17)	26.1 (35)
	17	55.2 (3.37)	2500	210 (3000)	119.2 (31)	51.8 (69.5)	11	36.4 (2.22)	2700	210 (3000)	88.5 (23)	35.4 (47.5)
	21	67.7 (4.12)	2500	210 (3000)	146.2 (38)	61.9 (83)	12	39.5 (2.41)	2700	160 (2300)	98.1 (25.5)	28.4 (38)
							14	45.9 (2.80)	2700	140 (2000)	115.4 (30)	29.1 (39)
3520VQ	25	81.6 (4.98)	2500	210 (3000)	173.1 (45)	75.3 (101)	5	18.0 (1.10)	2500	210 (3000)	38.5 (10)	16.5 (22)	34.0 (75)
	30	97.7 (5.96)	2400	210 (3000)	211.5 (55)	87.7 (117.5)	8	27.4 (1.67)	2500	210 (3000)	61.5 (16)	24.0 (32.5)
	35	112.8 (6.88)	2400	210 (3000)	230.0 (60)	98.5 (132)	11	36.4 (2.22)	2500	210 (3000)	80.8 (21)	33.0 (44)
	38	121.6 (7.42)	2400	210 (3000)	250.0 (65)	104.4 (140)	12	39.5 (2.41)	2500	160 (2300)	90.4 (23.5)	26.1 (35)
							14	45.9 (2.80)	2500	140 (2000)	105.8 (27.5)	26.8 (36)
3525VQ	25	81.6 (4.98)	2500	210 (3000)	173.1 (45)	75.3 (101)	12	40.2 (2.45)	2500	210 (3000)	79.5 (21)	38.0 (51)	34.5 (76)
	30	97.7 (5.96)	2500	210 (3000)	211.5 (55)	87.7 (117.5)	14	45.4 (2.77)	2500	210 (3000)	91.0 (24)	43.0 (58)
	35	112.8 (6.88)	2400	210 (3000)	230.0 (60)	98.5 (132)	17	55.2 (3.37)	2500	210 (3000)	119.2 (31)	51.5 (69)
	38	121.6 (7.42)	2400	210 (3000)	250.0 (65)	104.4 (140)	21	67.7 (4.12)	2500	210 (3000)	146.2 (38)	61.9 (83)
4520VQ	42	138.7 (8.46)	2200	175 (2500)	255.8 (66.5)	91.4 (122.5)	5	18.0 (1.10)	2200	210 (3000)	32.0 (8.5)	14.5 (19.5)	43.0 (94)
	50	162.3 (9.90)	2200	175 (2500)	303.8 (79)	105.2 (141)	8	27.4 (1.67)	2200	210 (3000)	51.0 (13.5)	21.0 (28.5)
	60	193.4 (11.80)	2200	175 (2500)	369.2 (96)	126.8 (170)	11	36.4 (2.22)	2200	210 (3000)	68.0 (18)	23.5 (32)
							12	39.5 (2.41)	2200	160 (2300)	77.5 (20.5)	23.0 (31)
							14	45.9 (2.80)	2200	140 (2000)	91.0 (24)	24.0 (32)
4525VQ	42	138.7 (8.46)	2200	175 (2500)	255.8 (66.5)	91.4 (122.5)	12	40.2 (2.45)	2200	210 (3000)	68.0 (18)	33.0 (44)	46.0 (101)
	50	162.3 (9.90)	2200	175 (2500)	303.8 (79)	105.2 (141)	14	45.4 (2.77)	2200	210 (3000)	79.5 (21)	38.0 (51)
	60	193.4 (11.80)	2200	175 (2500)	369.2 (96)	126.8 (170)	17	55.2 (3.37)	2200	210 (3000)	100.0 (26.5)	45.5 (61)
							21	67.7 (4.12)	2200	210 (3000)	125.0 (33)	54.5 (73)
4535VQ	42	138.7 (8.46)	2200	175 (2500)	255.8 (66.5)	91.4 (122.5)	25	81.6 (4.98)	2200	210 (3000)	145.5 (38.5)	66.8 (89)	53.6 (118)
	50	162.3 (9.90)	2200	175 (2500)	303.8 (79)	105.2 (141)	30	97.7 (5.96)	2200	210 (3000)	178.0 (47)	77.5 (104)
	60	193.4 (11.80)	2200	175 (2500)	369.2 (96)	126.8 (170)	35	112.8 (6.88)	2200	210 (3000)	211.5 (55)	89.5 (120)
							38	121.6 (7.42)	2200	210 (3000)	230.0 (60)	97.0 (130)

Performance constants: SAE 10W fluid @ 82°C (180°F); pump inlet @ 0 PSIG (14.7 PSIA)

Note: Outlet pressure must always be higher than inlet pressure. See page 5 for details.
