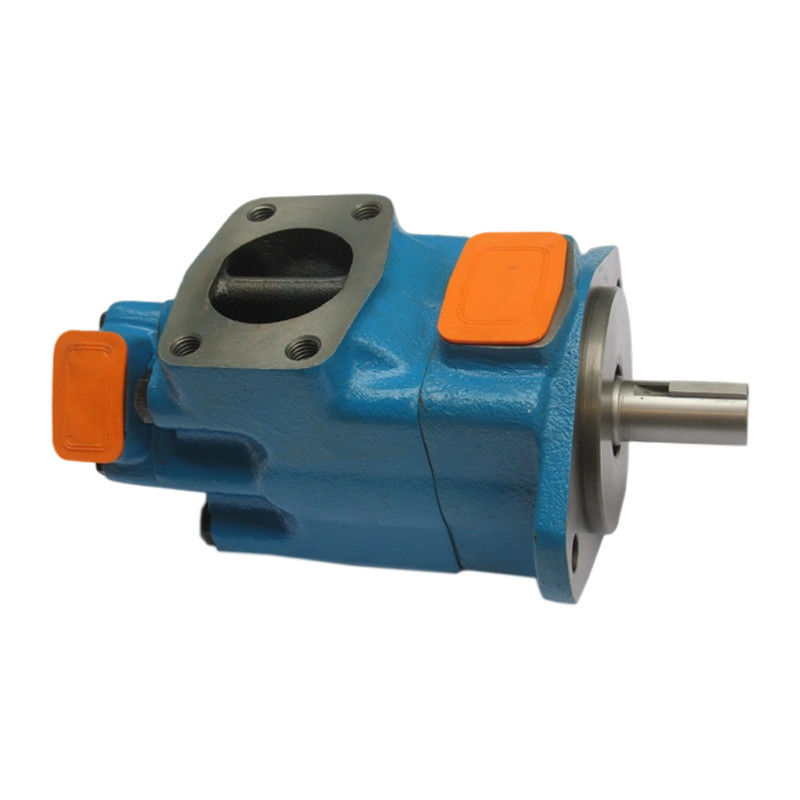

V Series Hydraulic Double Vane Pump 2520V 3520V 3525V 4520V 4525V 4535V

Name: V Series Hydraulic Double Vane Pump 2520V 3520V 3525V 4520V 4525V 4535V
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Price: 270.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Hydraulic Double Vane Pump 2520V

Hydraulic Double Vane Pump 3520V

Double Vane Pump 4535V

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD270.00

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

V Series Hydraulic Double Vane Pump

Features

Double pump combination of differing displacements permits simper circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with the benefit of low noise levels.

2520V, 3520V, 3525V, 4520V, 4525V, 4535V, each section pump flow code, see single pump technical data.

Model Number Designation

(F3-)	****V	**	A	**	(F)	-*	*	22	*
Prefix	Series Number	Shaft-end Displacement Code	Port Connection	Cover-end Displacement Code	Mounting Method	Shaft Extension Form	Outlet Position	Design Number	Rotation Direction
No mark: Petroleum - based Emulsion, Water - Glycol F3: Phosphate Ester Fluid	2520V	10, 12, 14, 17, 19, 21	A-SAE 4-Bolt Connection	2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14	No mark: Flange Mounting F: Foot Mounting	1 - Keyed Straight Shaft 151 - Spline Shaft 86 - Heavy - duty Keyed Straight Shaft 11 - Spline Shaft	(Viewed from the Cover End of the Pump) See the following figure	22	(Viewed from the Shaft End of the Pump) L-Counterclockwise Rotation R-Clockwise Rotation
	3520V	21, 25, 30, 32, 35, 38, 45		2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14
	3525V	21, 25, 30, 32, 35, 38, 45		10, 12, 14, 17, 19, 21
	4520V	42, 45, 50, 57, 60, 66, 75		2, 3, 4, 5, 6, 7 ,8, 9, 10, 11, 12, 14
	4525V	42, 45, 50, 57, 60, 66, 75		10, 12, 14, 17, 19, 21
	4535V	42, 45, 50, 57, 60, 66, 75		21, 25, 30, 32, 35, 38, 45

Rated Displacement in Usgpm at 1200r/min and 0.69MPa(100psi)
