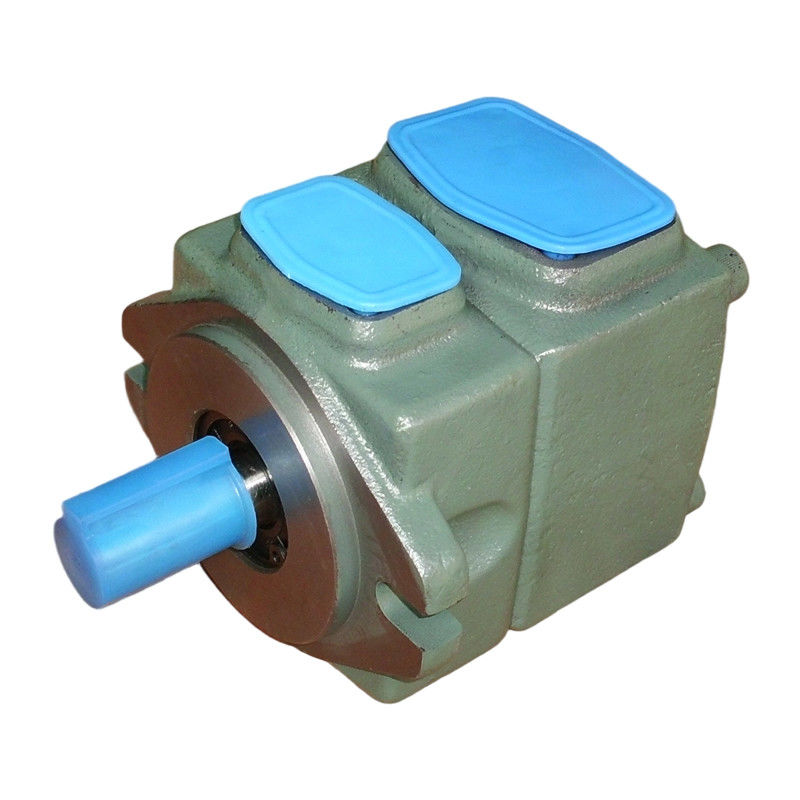

High Pressure Hydraulic Vane Pump PV2R1 PV2R2 PV2R3 PV2R4 Single Vane Pumps

Name: High Pressure Hydraulic Vane Pump PV2R1 PV2R2 PV2R3 PV2R4 Single Vane Pumps
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: PV2R Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	PV2R Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

PV2R Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

High Pressure Hydraulic Vane Pump

Hydraulic Vane Pump PV2R1

PV2R3 Single Vane Pumps

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

PV2R Series Single Vane Pumps High Pressure PV2R1 PV2R2 PV2R3 PV2R4

Features

This type of pump is specially developed for low noise, and it is a high-pressure, high-performance pump.
To meet a wide range of applications such as injection molding machines, this type of pump has a very wide flow rate range from 5.8 to 237 em/rev.
In addition, the internal components of the pump are conducive to maintenance.

Model Number Designation

PV2R1	-6	-L	-R	A	A	-43
Series Number	Nominal Displacement (cm³/rev)	Mounting Type	Rotation Direction	Outlet Position	Inlet Position	Design Number
PV2R1*	6, 8, 10, 12, 14, 17, 19, 23, 25, 31	L: Base Mounting Type F: Flange Mounting Type	[Viewed from Shaft Extension] R: Clockwise Direction (Standard)*	[Viewed from Shaft Extension] A: Upward (Standard)	[Viewed from Shaft Extension] A: Upward (Standard)	43
PV2R2*	41, 47, 53, 59, 65					41
PV2R3*	76, 94, 116					31
PV2R4*	136, 153, 184, 200, 237					30

Specifications

Model	Geometric Displacement (cm³/rev)	Maximum Operating Pressure (MPa)						Flow and Input Power	Speed Range (r/min)
		Petroleum-based Hydraulic Oil		Water-containing Hydraulic Fluid			Synthetic Hydraulic Fluid
		Anti-wear Oil	General Oil	AW Water-glycol Fluid*	Water-glycol Fluid	W/O Emulsion	Phosphate Ester Fluid		Max.	Min.
PV2R1 - 6	5.8	21*	16	16	7	7	16	Refer to Pages 180 - 182	1800(1200)	750*
PV2R1 - 8	8
PV2R1 - 10	9.4	21
PV2R1 - 12	12.2
PV2R1 - 14	13.7
PV2R1 - 17	16.6
PV2R1 - 19	18.6
PV2R1 - 23	22.7
PV2R1 - 25	25.3
PV2R1 - 31	31	16
PV2R2 - 41	41.3	21	14	16	7	7	14	Refer to Pages 182, 183	1800(1200)	600*
PV2R2 - 47	47.2
PV2R2 - 53	52.5
PV2R2 - 59	58.2
PV2R2 - 65	64.7
PV2R3 - 76	76.4	21	14	16	7	7	14	Refer to Pages 183, 184	1800(1200)	600
PV2R3 - 94	93.6
PV2R3 - 116	115.6	16							1800(1200)*
PV2R4 - 136	136	17.5	14	16	7	7	14	Refer to Pages 184, 185	1800(1200)	600
PV2R4 - 153	153
PV2R4 - 184	184
PV2R4 - 200	201
PV2R4 - 237	237								1800(1200)*
