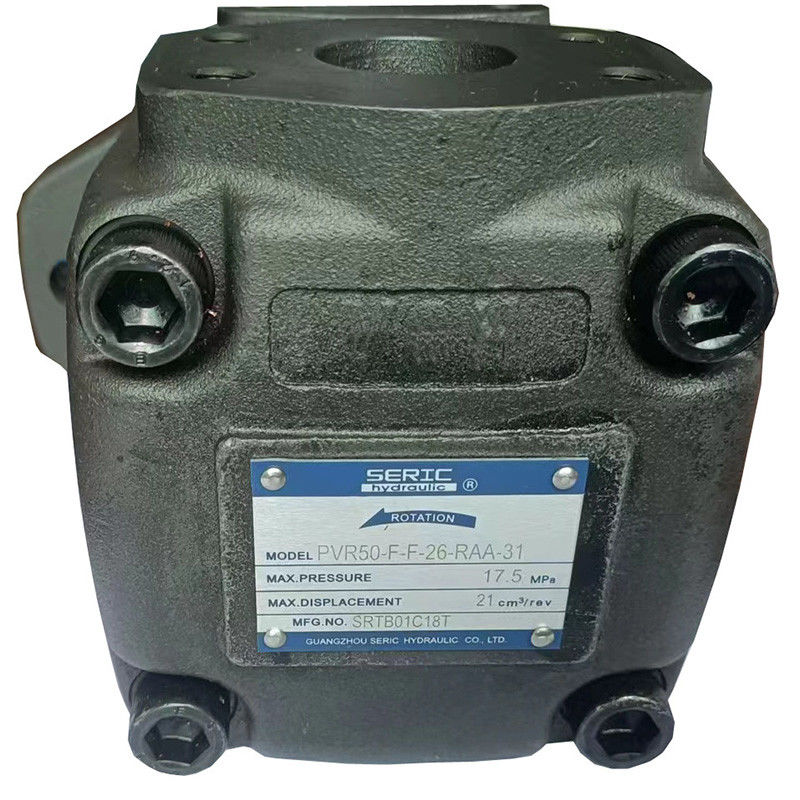

PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump

Name: PVR50 Series Double Vane Hydraulic Pump Variable Displacement Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: PVR50 Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	PVR50 Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

PVR50 Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Double Vane Hydraulic Pump

PVR50 Vane Hydraulic Pump

Double Variable Displacement Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

PVR50 Series Double Vane Pumps Variable Displacement Vane Pump

Features

1. Arc-shaped vanes, rationally designed and precisely processed, reduce vane-stator stress, extending their service life.

2. Stator uses advanced high-order shock-free curve for optimal vane motion, minimizing flow & pressure pulsations, reducing noise and prolonging life.

3. Hydraulically - balanced side plate boosts volumetric efficiency.

4. Key parts with quality materials and advanced heat treatment enhance pump reliability.

5. Cartridge - type structure allows quick pump core replacement (within minutes), with good interchangeability and easy maintenance.

Model Number Designation

F-	PVR50	-L	-F	-13	-R	A	A	-31	80
Special Seals	Series Number	Type of Mounting	Type of Pipe Connection	Nominal Displacement	Direction of Rotation	Discharge Port Position	Suction Port Position	Design Number	Design Standard
Special Seals	Series Number	Type of Mounting	Type of Pipe Connection	Nominal Displacement	As Viewed From Shaft End			Design Number	Design Standard
F: For Phosphate Ester Type Fluids (Omit if not required)	PVR50	L: Foot Type F:Flange Type	F: Flange Connection T: Threaded	13 20 26 30 36 39 45 51 56	R: Clockwise (Normal) L: Counter Clockwise	(See Drawing) A: Normal (Upward) B: Bottom R: Right L: Left	(See Drawing) A: Normal (Upward) B: Bottom R: Right L: Left	31	80

Specifications

Model Number	Geometric Displacement (cm³/rev.)	Max. Opr. Pressure (Kgf/cm²)	Output Flow and Input Power	Shaft Speed Range (r/min.)		Mass (Approx.) (Kg.)
				Max.	Min.	Flange Mounting	Foot Mounting
PVR50-13	10	175	Ref. Page 8, 9 & 10	2000	600	12	14.7
PVR50-20	15
PVR50-26	21
PVR50-30	24.5
PVR50-36	29.5
PVR50-39	31.5
PVR50-45	39
PVR50-51	43
PVR50-56	47.5
