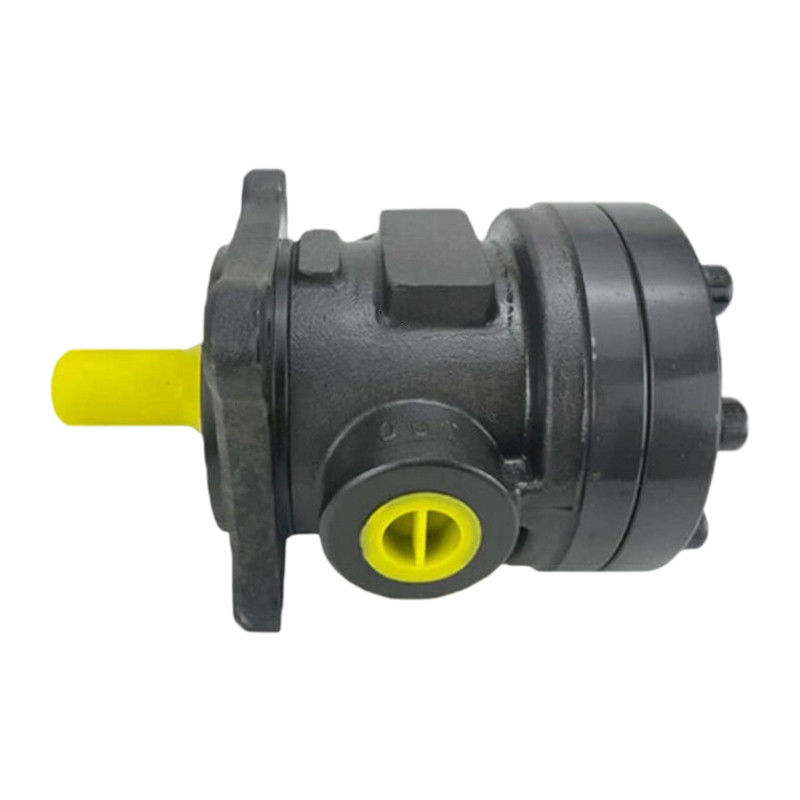

50T Series Double Vane Pumps High Pressure Low Noise Vane Pump

Name: 50T Series Double Vane Pumps High Pressure Low Noise Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: 50T Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	50T Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

50T Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Double Vane Pumps High Pressure

Double Vane Pumps Low Noise

50T Low Noise Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

50T Series Double Vane Pumps High Pressure Low Noise

Features

Yuken vane pumps feature low noise, a wide flow range, and high-pressure, high-performance operation.
Widely applied in various industries, including light industrial machinery (such as injection molding machines, blow molding machines, die-casting machines, shoe-making machines, etc.), forging machinery (such as pipe benders, hydraulic presses, bending machines, etc.), metallurgical machinery, and port machinery.

Model Number Designation

50T	-7	-L	-R	L	-30
Model	Nominal Displacement (cm³/rev)	Mounting Type	Rotation Direction	Outlet Position	Design Number
50T (Threaded Connection Type)	7,12,17,23,26,36	L: Base Mounting Type F: Flange Mounting Type	[Viewed from Shaft Extension End] R: Clockwise Direction (Standard)	[Viewed from Shaft Extension End] L: On the Left-hand Side (Standard)	30
150T (Threaded Connection Type)	48,61,75,94,116	L: Base Mounting Type F: Flange Mounting Type			40

Specifications

Model Number	Geometric Displacement (cm³/rev)	Maximum Working Pressure (MPa)			Flow and Input Power	Speed Range (r/min)		Mass (kg)
		Petroleum-based Hydraulic Oil		Synthetic Hydraulic Fluid
		Anti-wear Oil	Ordinary Oil	Phosphate Ester Fluid		Maximum	Minimum	Base Mounting Type	Flange Mounting Type
50T - 7	6.8	7	7	7	Refer to Pages 171, 172	2000*	800	10.5	9
50T - 12	11.6						600
50T - 17	16.5					1800*
50T - 23	22.9
50T - 26	25.9
50T - 36	36
150T - 48	47.7	7	7	7	Refer to Pages 172, 173	1500*	600	26	25
150T - 61	61.1
150T - 75	74.9
150T - 94	93.6					1200
150T - 116	115.6
