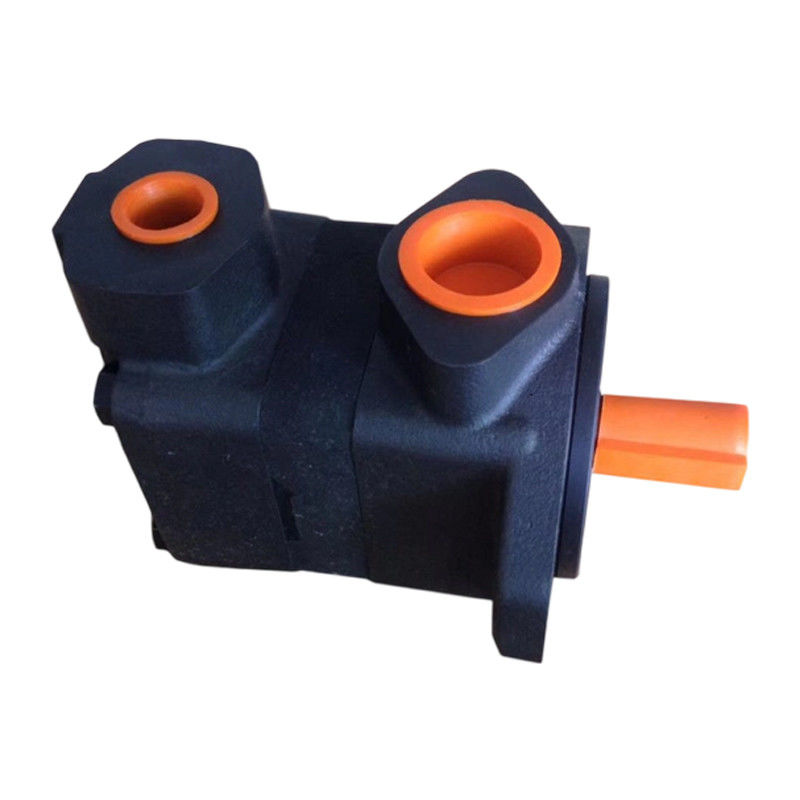

Industrial Machinery Hydraulic Vane Pump V10 Series Single Vane Pump

Name: Industrial Machinery Hydraulic Vane Pump V10 Series Single Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Price: 45.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

Industrial Hydraulic Vane Pump

Single Hydraulic Vane Pump

V10 Single Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD45.00

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

Hydraulic Vane Pump Single Pump V10 Series

Features

Seric offers the most complete line of hydraulic pumps and motors for mobile and industrial applications.

V10 Type Single Pump Operating Specifications

Series	U.S. GPM	Displ. (cm³/r)	Max. Operating Pressure (MPa)	Max. Speed (rpm)	Min. Speed (rpm)
V10	1	3.3	17.5	4800	600
	2	6.6	17.5	4500
	3	9.8	17.5	4000
	4	13.1	17.5	3400
	5	16.4	17.5	3200
	6	19.5	16	3000
	7	22.8	14	2800

V10 Type Single Pump-Model Code

V10	-1	P	5	P	-1	C	20	R
Series	Mounting	Inlet Port Connections	U.S. GPM	Outlet Port Connections	Shafts	Outlet Positions	Design Number	Rotaiton
V10	1-2 bolt flange 6-2 bolt flange (SAE"B")	P-1"NPT thread S-str.thd.	1, 2, 3, 4, 5, 6, 7	P-1/2" NPT thd. S-st.thd.	1-str key 11-spline 38-spline	(viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet	20	(Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise
