Home > products >

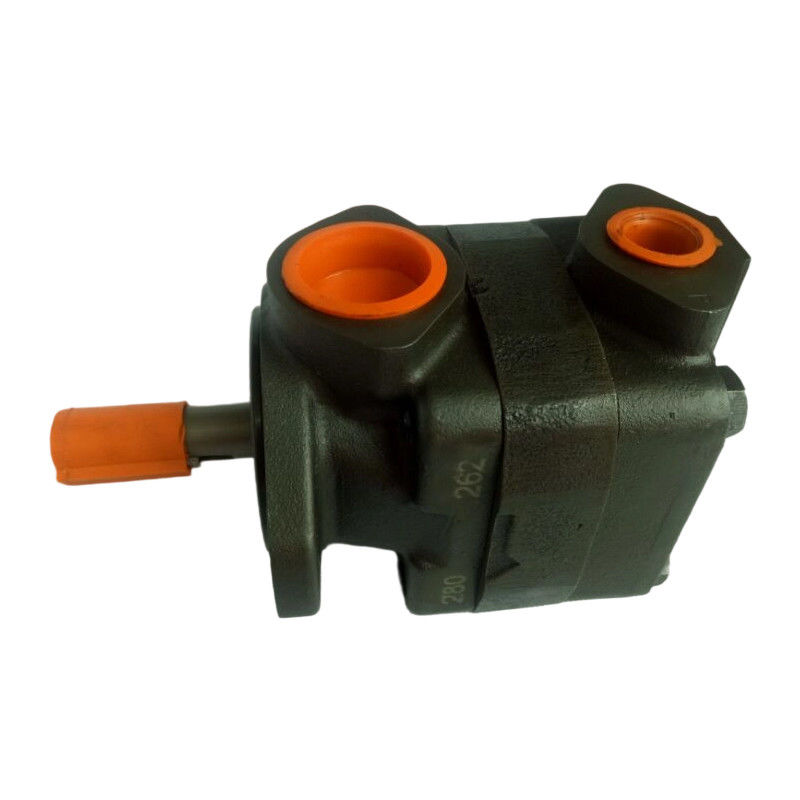

V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications

Name: V20 Series Hydraulic Vane Pump Single Pump For Mobile And Industrial Applications
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Price: 50.00 USD
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

V20 Hydraulic Vane Pump

Mobile Hydraulic Vane Pump

Hydraulic V20 Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

USD50.00

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

V20 Series Hydraulic Vane Pump Single Pump

Features

Seric offers the most complete line of hydraulic pumps and motors for mobile and industrial applications.

V20 Type Single Pump Operating Specifications

Series	U.S. GPM	Displ. (cm³/r)	Max. Operating Pressure (MPa)	Max. Speed (rpm)	Min. Speed (rpm)
V20	6	19.5	17.5	3400	600
	7	22.8	17.5	3000
	8	26.5	17.5	2800
	9	29.7	17.5	2800
	11	36.4	17.5	2500
	12	39	16	2400
	13	42.4	16	2400

V20 Type Single Pump-Model Code

V20	-1	P	11	P	-1	C	11	R
Series	Mounting	Inlet Port Connections	U.S. GPM	Outlet Port Connections	Shafts	Outlet Positions	Design Number	Rotaiton
V20	1-2 bolt flange 6-2 bolt flange (SAE"B")	P-1 1/4" NPT thd. S-st. thd.	6,7,8, 9,11, 12,13,	P-1/2 NPT thd. S-st.thd.	1-str key 11-spline 38-spline 62-SAE A spline	(viewed from cover end of pump) A-Opposite inlet B-900CCW from inlet C-In line with inlet D-900CW from inlet	11	(Viewed from shaft end of pump) R-Right hand for clockwise, omit L-left hand for counterclockwise
