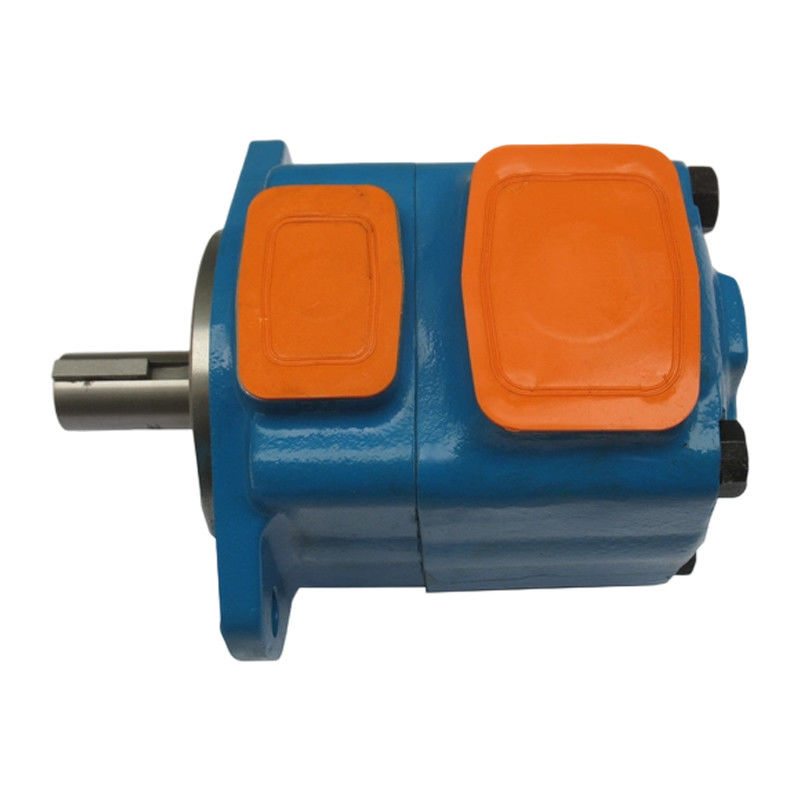

VQ Series Single Vane Pump
These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.
Series
|
Code (Usgpm) |
Geometric Displacement (ml/r) |
Max Operating Pressure (Mpa) |
Max Speed (rpm) |
Min Speed (rpm) |
20VQ | 2 | 7 | 21 | 2700 | 600 |
3 | 10 | 21 | 2700 | ||
4 | 13 | 21 | 2700 | ||
5 | 16.5 | 21 | 2700 | ||
6 | 19 | 21 | 2700 | ||
7 | 22 | 21 | 2700 | ||
8 | 27 | 21 | 2700 | ||
9 | 30 | 21 | 2700 | ||
10 | 31.5 | 21 | 2700 | ||
11 | 35 | 21 | 2700 | ||
12 | 40 | 16 | 2700 | ||
14 | 45 | 14 | 2700 | ||
25VQ | 10 | 32 | 21 | 2700 | |
12 | 38 | 21 | 2700 | ||
14 | 43.5 | 21 | 2700 | ||
15 | 47 | 21 | 2500 | ||
17 | 54 | 21 | 2500 | ||
19 | 60 | 21 | 2500 | ||
21 | 67 | 21 | 2500 | ||
35VQ | 21 | 67 | 21 | 2500 | |
25 | 81 | 21 | 2500 | ||
30 | 95 | 21 | 2500 | ||
32 | 101 | 21 | 2500 | ||
35 | 109 | 21 | 2400 | ||
38 | 119 | 21 | 2400 | ||
45VQ | 42 | 134 | 17.5 | 2400 | |
45 | 143 | 17.5 | 2200 | ||
50 | 159 | 17.5 | 2200 | ||
57 | 181 | 17.5 | 2200 | ||
60 | 189 | 17.5 | 2200 | ||
66 | 210 | 17.5 | 2200 | ||
75 | 237 | 14 | 2200 |
