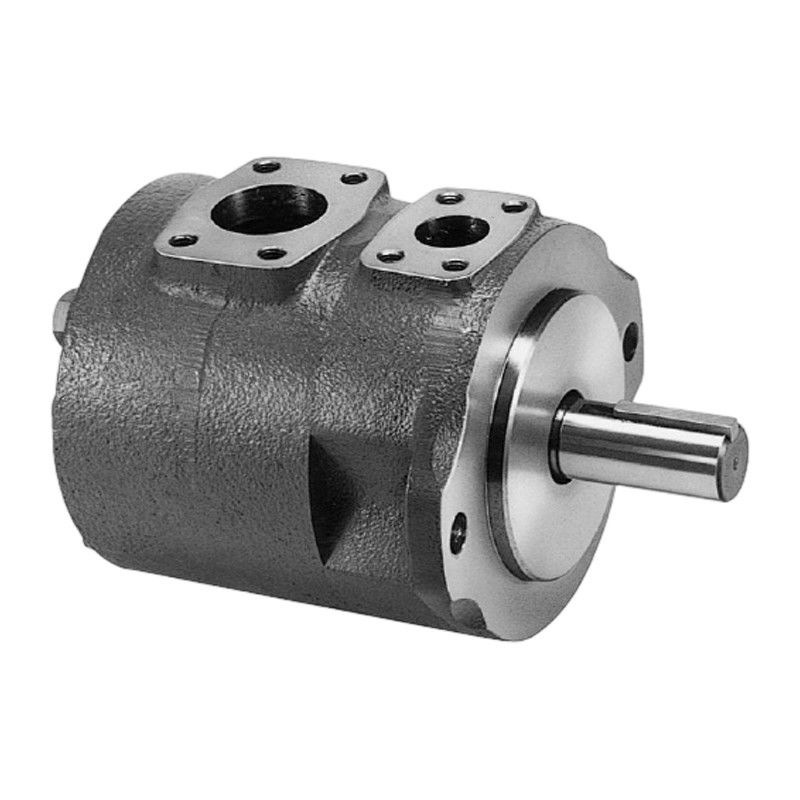

SQP Series Low Noise Vane Pump Hydraulic High Pressure Vane Pump

Name: SQP Series Low Noise Vane Pump Hydraulic High Pressure Vane Pump
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: SQP Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	SQP Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

SQP Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

SQP Low Noise Vane Pump

Low Noise Vane Pump Hydraulic

Hydraulic High Pressure Vane Pump

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

SQP Series Low Noise Vane Pump

Features

These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.

Single Pump Operating Specifications

Series	Code (Usgpm)	Geometric Displacement (ml/r)	With antiwear hydraulic oil or phosphate ester fluid		With water glycol fluid		With water-oil emulsons		Min.speed (rpm)
Series	Code (Usgpm)	Geometric Displacement (ml/r)	Max. Operating Pressure (Mpa)	Max. Speed (rpm)	Max. Operating Pressure (MPa)	Max. Speed (rpm)	Max. Operating Pressure (Mpa)	Max. Speed (rpm)	Min.speed (rpm)
SQP1	2	7.5	14	1800	14	1500	7	1200	600
	3	10	14		14
	4	13	17.5		16
	5	16.5
	6	19
	7	23
	8	27
	9	30
	10	32
	11	36
	12	40	16
	14	45	14		14
SQP2	10	32.5	17.5		16
	12	39
	14	45
	15	47
	17	55)
	19	60
	21	67
SQP3	21	67	17.5		16
	25	81
	30	97
	32	101
	35	112
	38	121
SQP4	42	138	17.5		16
	45	147
	50	162
	57	181
	60	193
	66	212
	75	237	14		14
