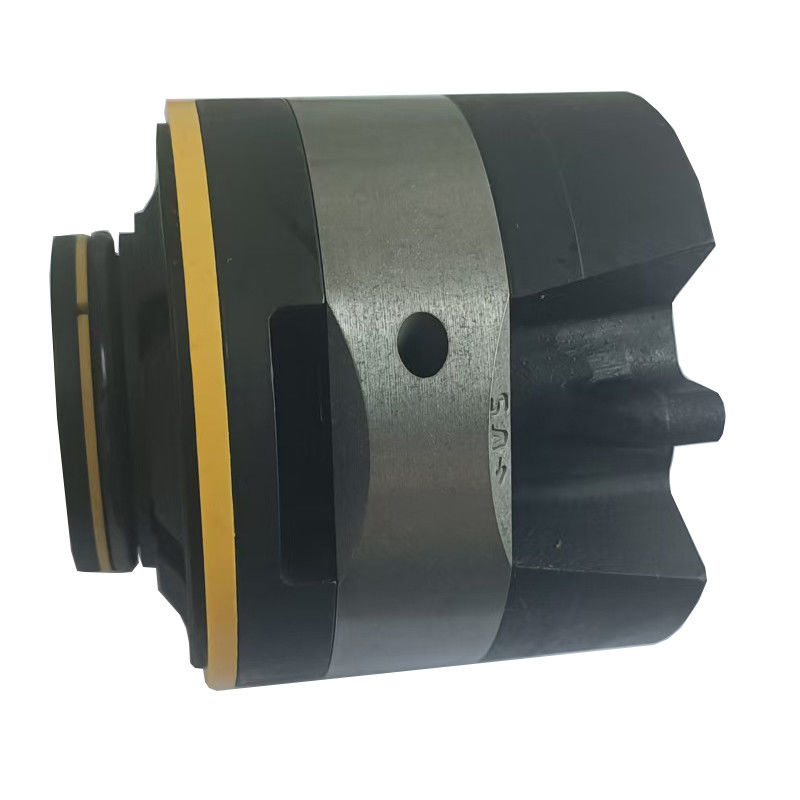

V Series 20V 25V 35V 45V Hydraulic Vane Pump Cartridge Kits

Name: V Series 20V 25V 35V 45V Hydraulic Vane Pump Cartridge Kits
Brand: Guangzhou Seric Hydraulic Co., Ltd.
SKU: V Series
Availability: InStock

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	Seric
Certification:	CE, ISO
Model Number:	V Series

Detail Information

Place of Origin:

Guangzhou, China

Brand Name:

Seric

Certification:

CE, ISO

Model Number:

V Series

After Warranty Service:

Online Support

OEM:

Condition:

100% Brand-new

Quality:

High-Quality

Application:

Industrial Machinery

Selling Units:

Single Item

Highlight:

High Light

Highlight:

35V Hydraulic Vane Pump

45V Hydraulic Vane Pump

20V Vane Pump Cartridge Kits

Trading Information

Minimum Order Quantity:

1 Piece

Price:

Negotiable

Packaging Details:

Carton Box/Wooden Case

Delivery Time:

1-15 days

Payment Terms:

T/T,L/C,Western Union

Supply Ability:

5000

Product Description

V Series Vane Pump Cartridge Kits 20V 25V 35V 45V

Model Code

(F3)	- PC	25V	- 21	- 10	R
(F3): Viton seals	Cartridge kit mark	Series designation	Flow code	Design number	Rotation
Omit if not required	PC: Cartridge kit of single pump and double pump shaft end PCT: Cartridge kit of double pump cover end		Flow (USgpm) at 1200rpm and 6.9bar		Viewed from shaft end of pump R: Right hand for clockwise, omit L: Left hand for counterclockwise

Installation dimensions

Series	A	B	C	D	E	F	G	H	K	M (Gasket)	N (O - Ring)
20V	82.5	81.5	70.1	47	61.5	4.8	76.2	6	73.6	82.76 × 76.26 × 3.5	40 × 3.5
25V	96.8	98.8	87	62.2	71.2	4.8	90.5	5	88.19	97 × 91 × 3.5	44 × 3.53
35V	114.3	117.7	105	72.2	90.3	6.4	108	6	103.94	114.5 × 108.5 × 3.5	63.09 × 3.53
45V	133.35	141.1	129.6	80.2	105.5	6.4	127	10	133.35	133.6 × 127.6 × 3.5	71 × 3.55

Series	Inside spline tooth outline parameter of rotor
Series	Pitch	Number of teeth	Pressure angle	Major diameter	Minor diameter
20V	48/96	30	45°	16.617	15.56
25V	48/96	40	45°	21.9	20.86
35V	40/80	37	45°	24.38	23.1
45V	12/24	14	30°	32.59	27.6
